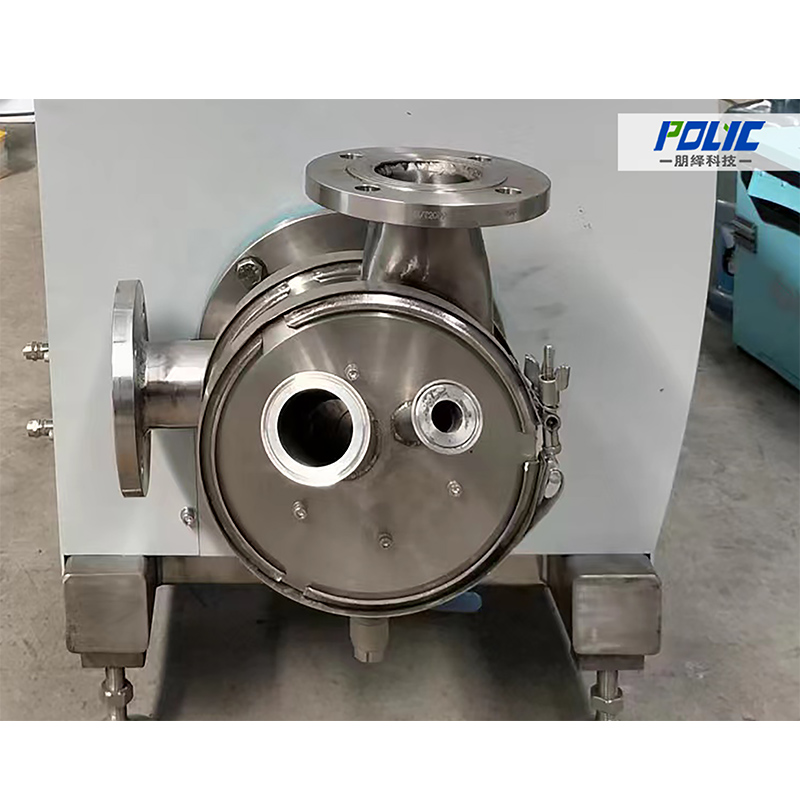

IDS Inline Dispersion Machine

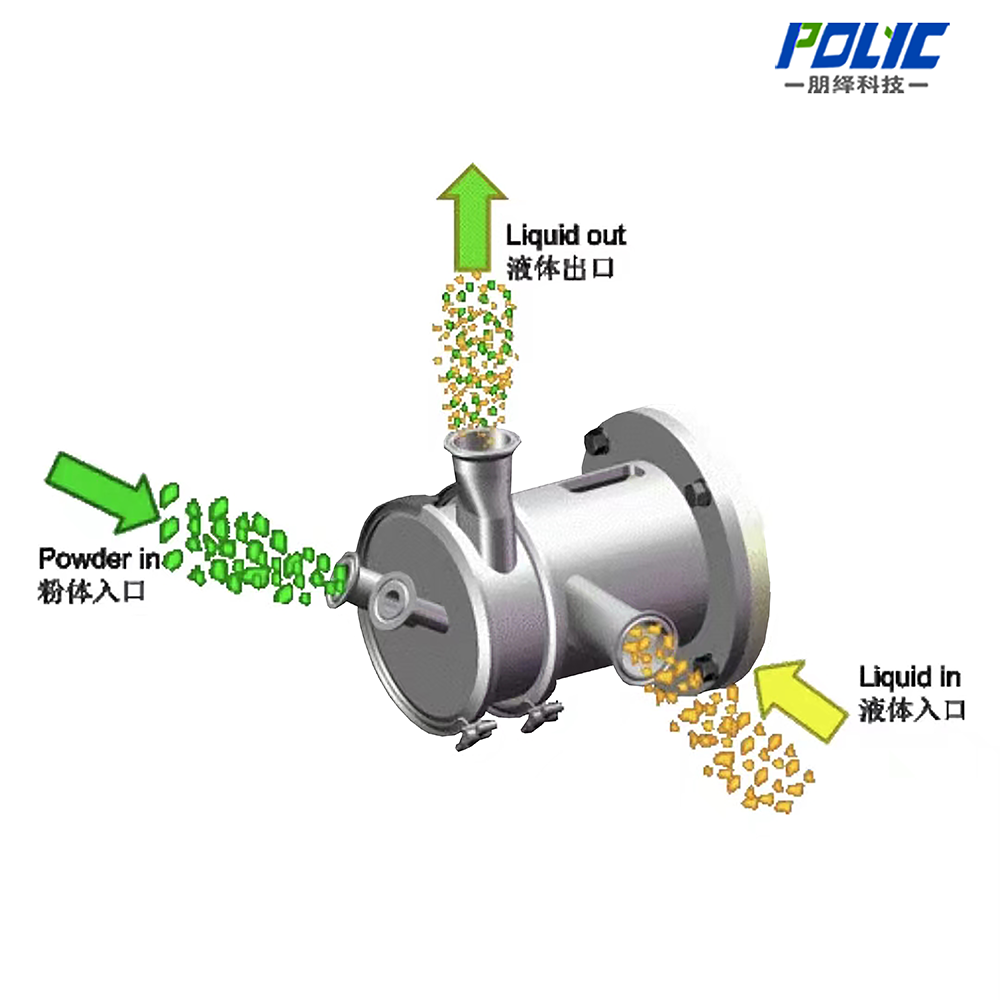

IDS is a dust free technology which mixing dispersing and grinding solid-liquid rapidly.

The high-tech continuous in-line disperser working on rotor-stator principle.

It is suitable in a large range of applications and revamping of existing processes.

It has wetting, blending dispersing, dis-agglomeration, dissolving, emulsifying,

homogenization, powder induction and dust free functions in one machine.

Email: export@polycmill.com

Tel: 8613816774633

Whatsapp: 8613816774633

IDS Inline Dispersion Machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Product Features：

● High flexibility and versatility

● Low volume mixing chamber for the dispersion and mixing of powders and liquids at high output speed

● Unit for wetting and dispersing powders

● Outstanding powder induction and product homogeneity

● 40%-70% energy saving

● Manpower saving

● Dust-free operator-safe solution

● Easy cleaning and reduced dead-time between different batches

● Modular and movable set up, easy installation

● Wide range of rotors and stators in AISI 316 stainless steel to manage products characterized by different viscosities, densities, fineness of dispersion

● Vacuum suction for rapid dust absorption

● Automatic valve, resistant to suction above the mixing chamber to avoid wetting the powder inlet tubes

● Electronic speed regulation by inverter

● Surface treatments for high wear resistance inside the process chamber

● Temperature senso

● Pressure sensor

● Flow sensor

Product Parameters：

Parameter	Power	Powder suction speed (Take titanium dioxide as example)	Speed
Model	Kw	Kg/min	rpm
IDS11	7.5/11	1-30	3000
IDS22	22/30	5-150	3000
IDS45	45/55	10-200	3000
IDS75	75/90	30-200	3000
