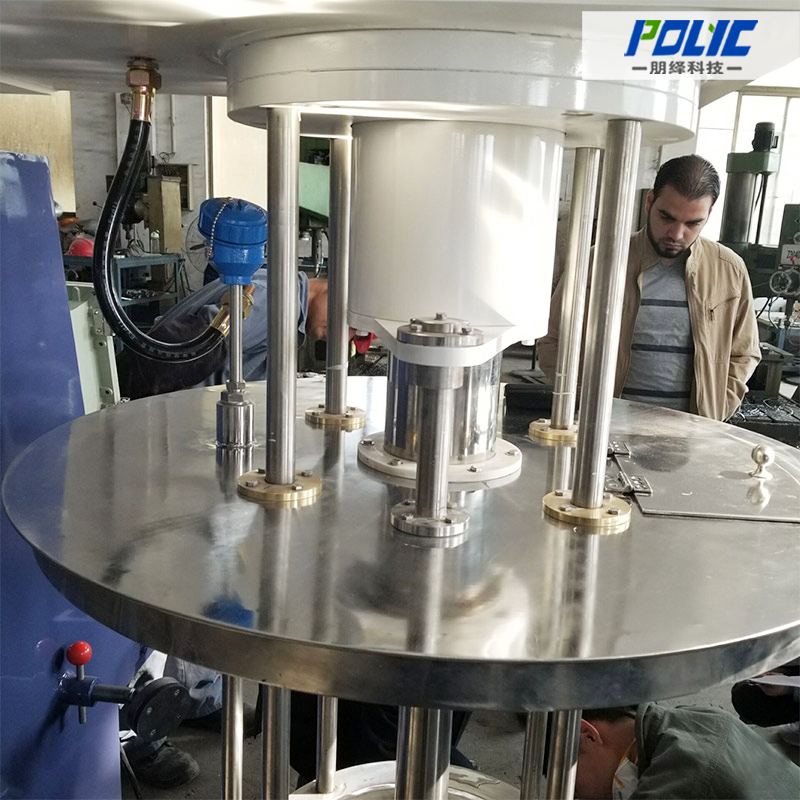

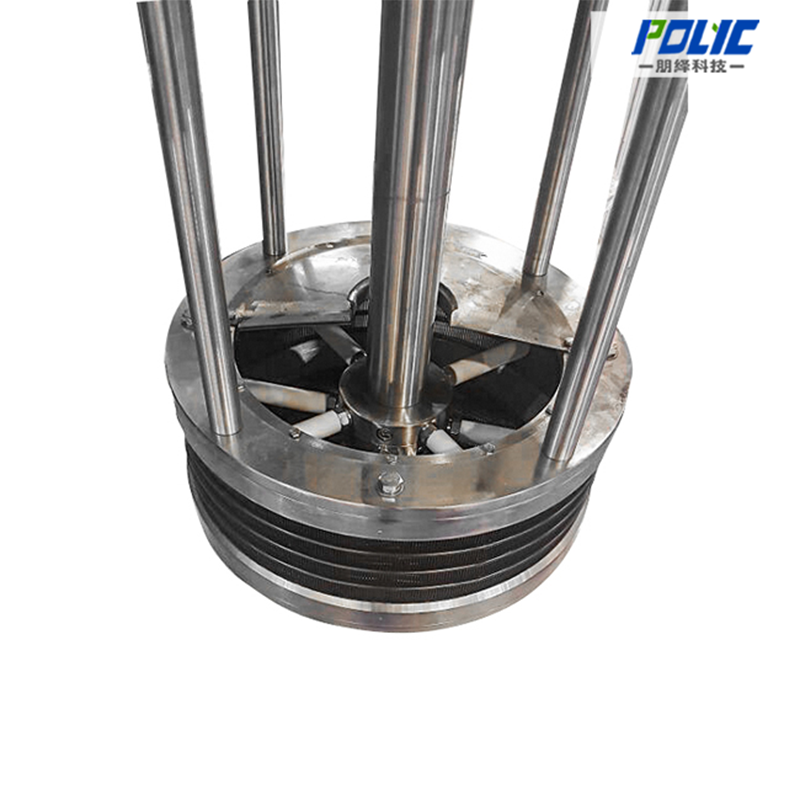

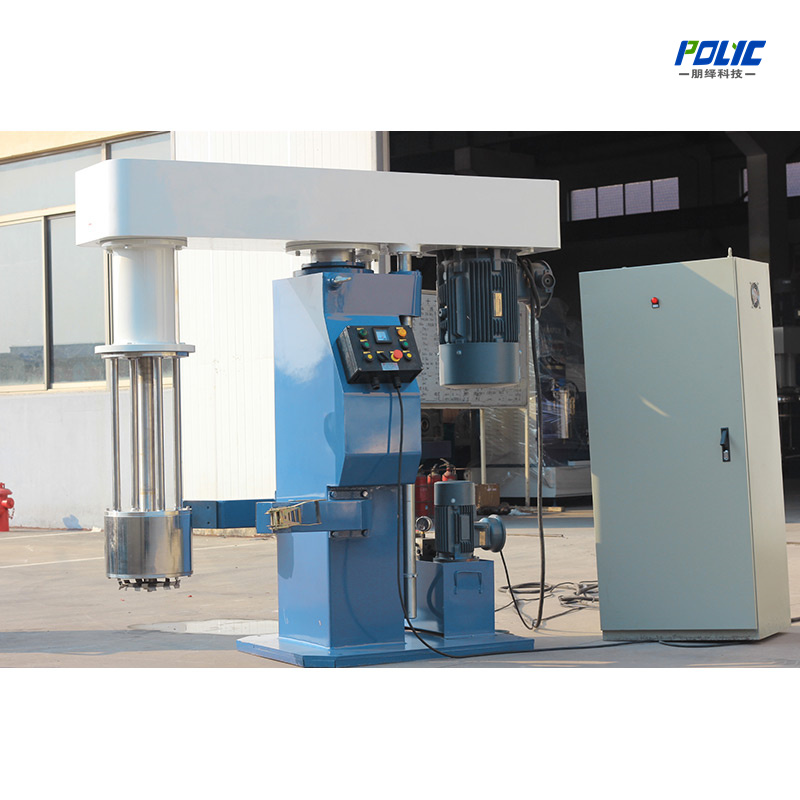

Basket Mill

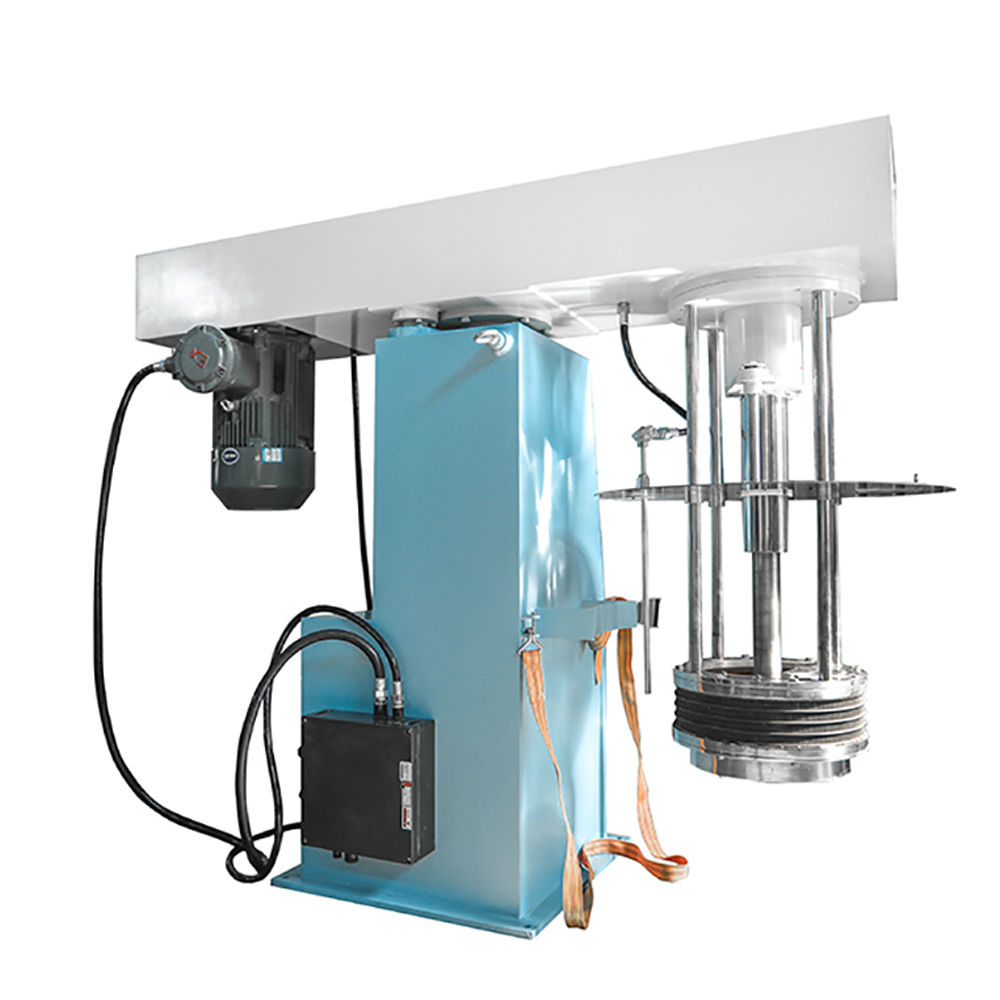

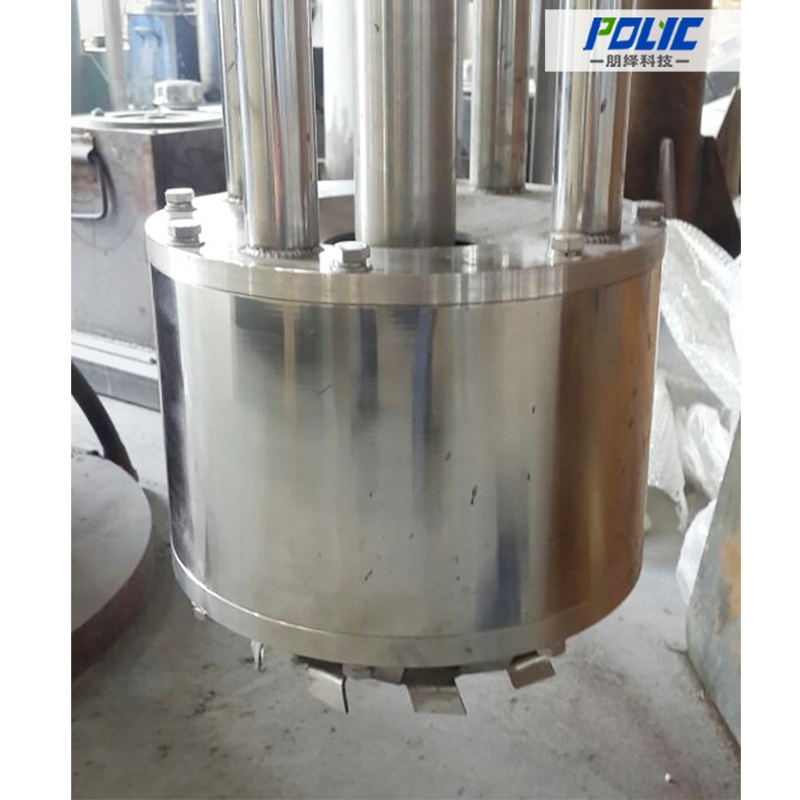

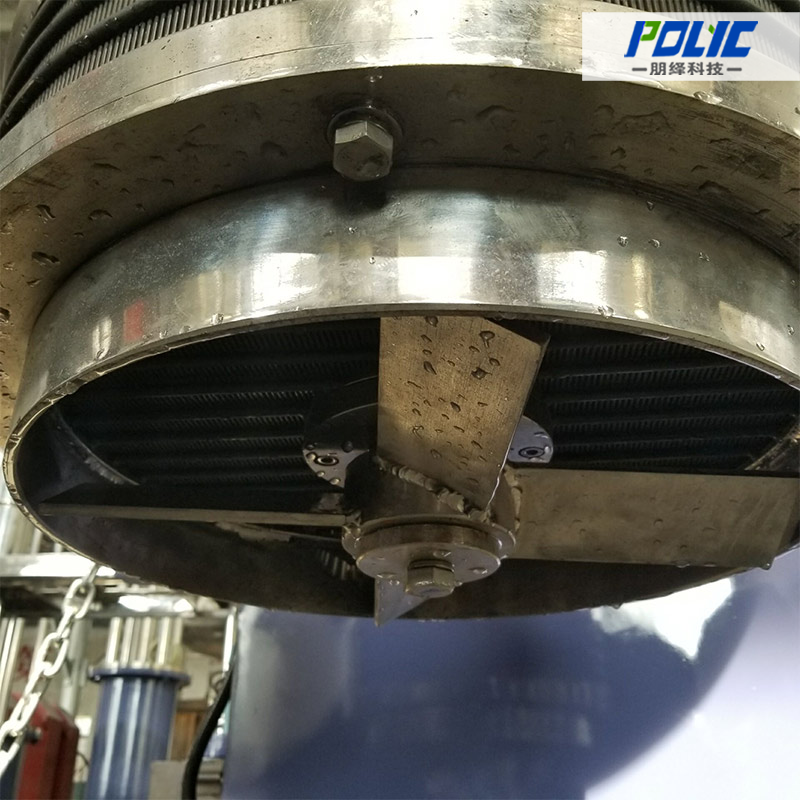

PZM Basket Mill is a kind of multi-functional submersible wet grinding mill from batch to batch. It possesses both grinding and dispersing function. The optimized design for basket mill ensures that your materials pass through the high density dispersion zone within the milling chamber at a high frequency, with much high grinding efficiency than traditional media milling systems. Our PZM basket mill with less clean-up and a reduction in waste solvents. Premixing, dispersion, and grinding are all accomplished in a single unit that requires less space, less time and less energy to achieve bigger results.

Email: export@polycmill.com

Tel: 8613816774633

Whatsapp: 8613816774633

Basket Mill

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Product Features：

1. PZM Basket Mill is suitable for producing small batch product and middle test. Dispersing and grinding are finished in one machine and one container, no need extra pumps, piping, valves etc .

2. The PZM Basket Mill is easy for cleaning, no residues, convenient product replacement.

3. Little grinding media required. Excellent grinding efficiency and effect.

4. Double-walled container for cooling and heating.

5. Modular design of parts make the basket mill much more convenient to disassemble, maintain and overhaul, almost no need of professional maintainer.

6. Materials Viscosity: ≤ 8000 cps

7. Production Capacity: 50-3000L

Product Parameters：

Parameter of PZM Basket Mil

Parameter	Power	Speed	Handling capacity	Basket Capacity	Lifting height
Model	Kw	(rpm)	L	L	mm
PZM50	2.2	0-1500	10-30	1	400
PZM100	4	0-1500	30-80	2	500
PZM150	7.5	0-1500	80-150	4	600
PZM200	11	0-1500	80-200	6	700
PZM300	15	0-1500	150-300	10	800
PZM400	18.5	0-1500	200-400	16	900
PZM500	22	0-1200	250-500	20	1000
PZM1000	30-37	0-1200	500-1000	30	1100
PSD1500	45-55	0-1000	1000-1500	70	1300
