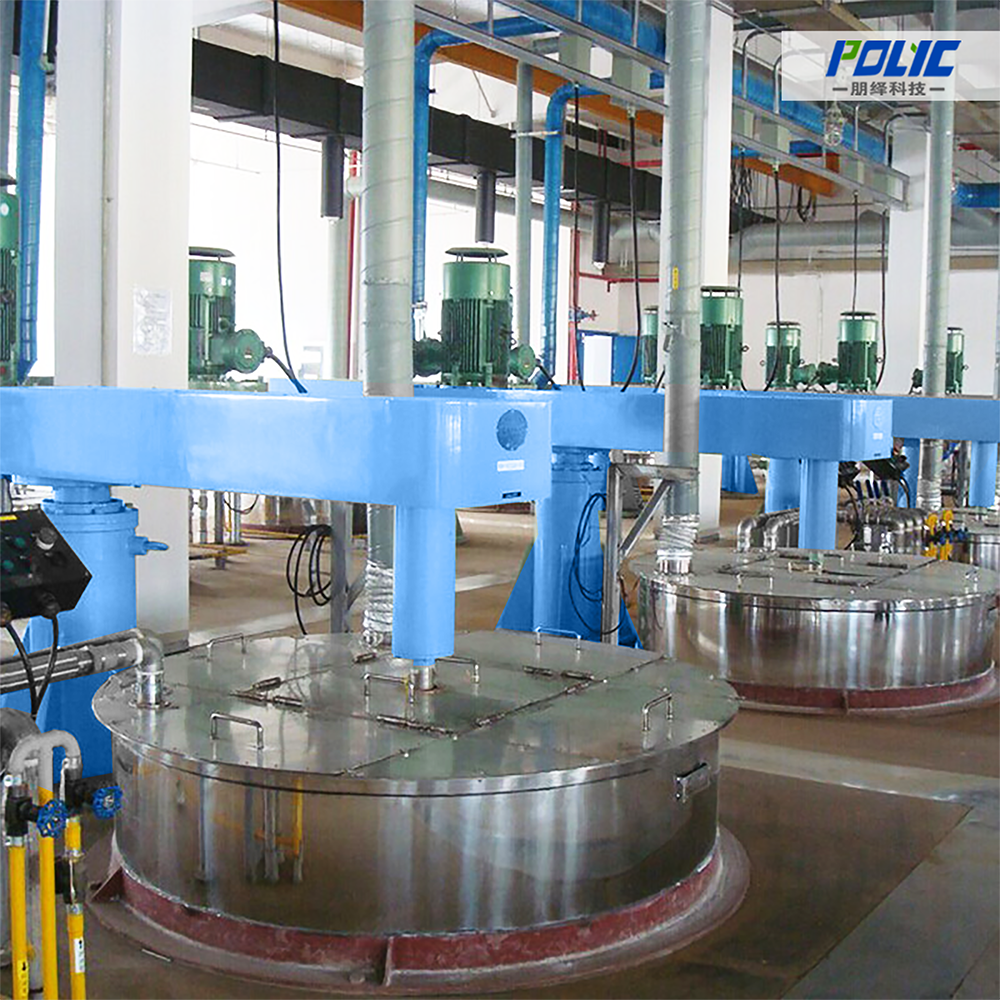

Mezzanine Disperser

Our PSD Mezzanine Disperser is a kind of platform-type high-speed disperser. This machine is suitable for product dispersing, mixing, blending and other production processes. The Mezzanine Disperser can be used for wet dispersing and mixing liquid-solid material. Non-grade speed adjustment by frequency converters, hydraulic elevating, working steadily, use and maintenance expediently.

Email: export@polycmill.com

Tel: 8613816774633

Whatsapp: 8613816774633

Mezzanine Disperser

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Product Features：

The PSD Mezzanine Disperser has the below features:

● Dissolver and mixing container as a compact unit

● Closed system

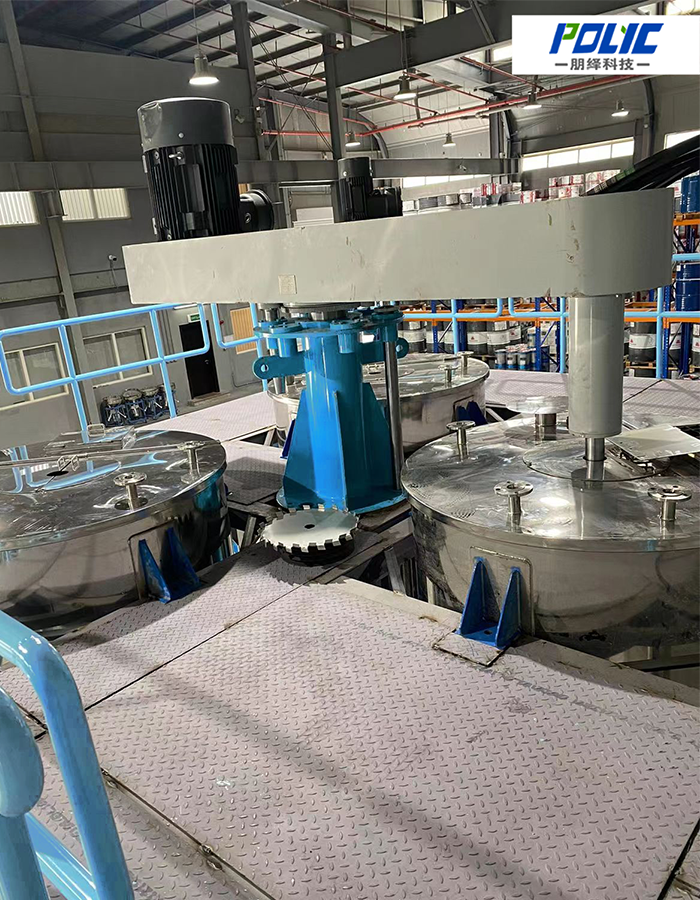

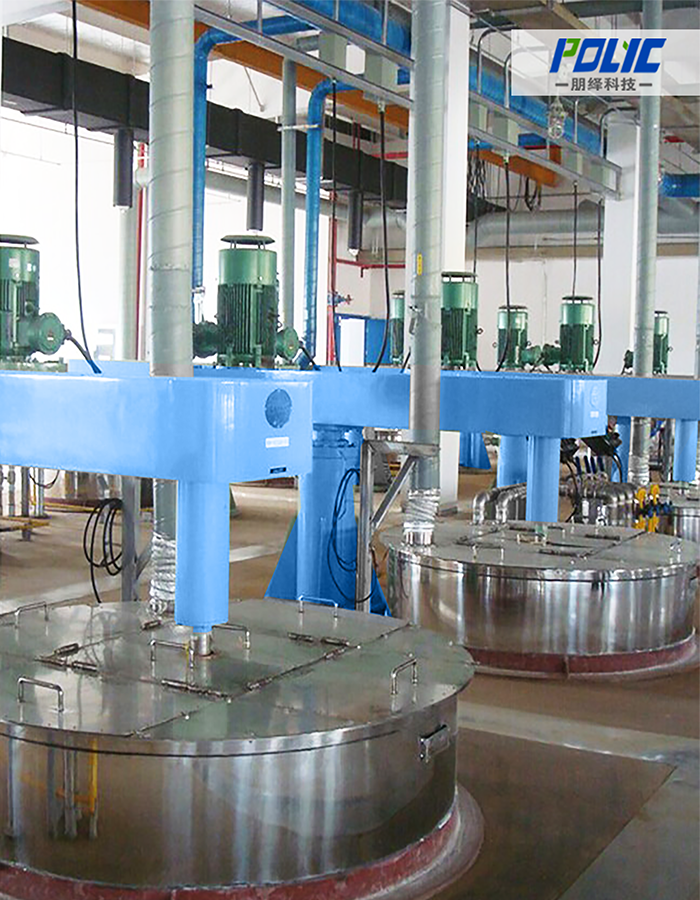

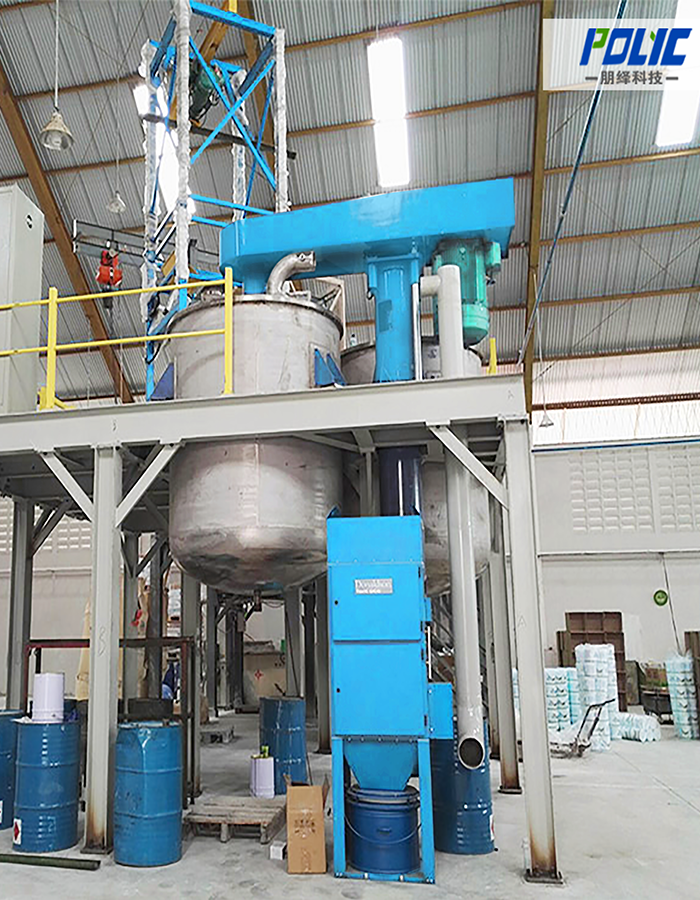

● Mezzanine Disperser installation in a steel platform or ceiling

● Height-adjustable toothed disc

● Batch sizes from 500 to 15.000 liters

● Driving powers of 37 to 312Kw

● Container cover can be opened for maintenance and cleaning

● Production of medium to high-viscous products

● Drive by modern frequency converter technology or mechanical pulley-drive system

● Mezzanine Disperser is suitable and developed for the use in a highly-concentrated initial dispersion quantity (mill charge)

Product Parameters：

Parameter of PSD Mezzanine Disperser

Parameter	Power	Speed	Disc diameter	Lifting height	Pump Power	Handling Capacity	Weight
Model	Kw	rpm	mm	L/H	Kw	L	KG
PSD18.5/22/30/37	18.5/22/30/37	0-1450	350/400	1200	1.1	600-2000	1700
PSD45/55	45/55	0-1200	450	1300	1.5	1000-2500	2100
PSD75/90	75/90	0-1200	600	1600	2.2	5000	2600
