20L Pin Type Bead Mill（Sand Mill）

PZB pin type bead mill is the high energy-intensive wet grinding mill. The PZB pin type bead design with good cooling system and special grinding pins with front end material outlet sieve smallest grinding media 0.3mm diameter are applicable. This technology you will achieve the highest grinding fineness into the nanometer range with strong color strength. It is the first choice for many ink customers for its high efficiency, high discharge accuracy, relatively less time required, and smoother discharge.

Email: export@polycmill.com

Tel: 8613816774633

Whatsapp: 8613816774633

20L Pin Type Bead Mill（Sand Mill）

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Product Features：

The PZB pin type bead mill with the new and modular design of rod pin, higher grinding efficiency, more convenient maintenance;
Uniform distribution of the grinding beads density in the grinding chamber for maximum effectiveness.
New centrifugal separation system, better separation effect, higher production efficiency;
Large discharge area, larger flow, more suitable for continuous production and cycle production;
The mechanical seal of PZB pin type bead mill is designed as a collection-type self-circulation structure, which is more stable and convenient to maintain.

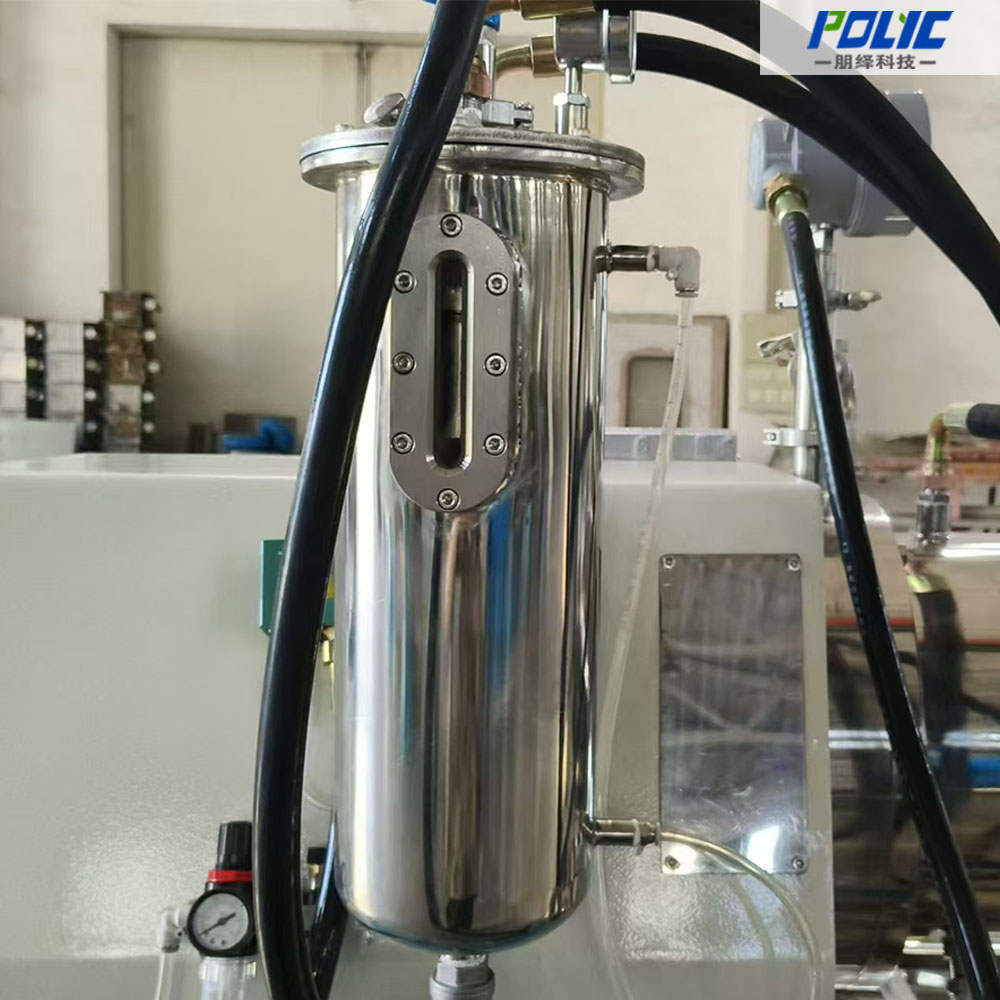

Forced cooling is carried out on the grinding cylinder, rotor, transmission shaft and discharging end face, and the material temperature is controllable;

Product Parameters：

Parameter	Working Volume	Power	Batch	Cooling Water
Model	L	Kw	L	L/H
PZB6	6	15	300	1000
PZB10	10	18.5	500	1500
PZB20	20	30	1000	2000
PZB30	30	37/45	2000	2000
PZB60	60	75	3000	2500
PZB150	150	160/200	5000	4000
