Dynamic Disc Type Horizontal Bead Mill（Sand Mill）

PZD Dynamic Disc Type Horizontal Bead Mill is the most stable and mature grinding mill. It’s our hot sell mill. The grinding discs are specially designed to have higher efficiency and low energy consumption ratio to obtain smaller particle size, narrower particle size range. It is the bead mill with higher performance-cost ratio among the grinding machines . Easy to clean and operate.

Email: export@polycmill.com

Tel: 8613816774633

Whatsapp: 8613816774633

Dynamic Disc Type Horizontal Bead Mill（Sand Mill）

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Product Features：

● PZD Dynamic Disc Type Horizontal Bead Mill adopts double end mechanical seal, lubricating liquid dissolves with product, safety, and reliability.

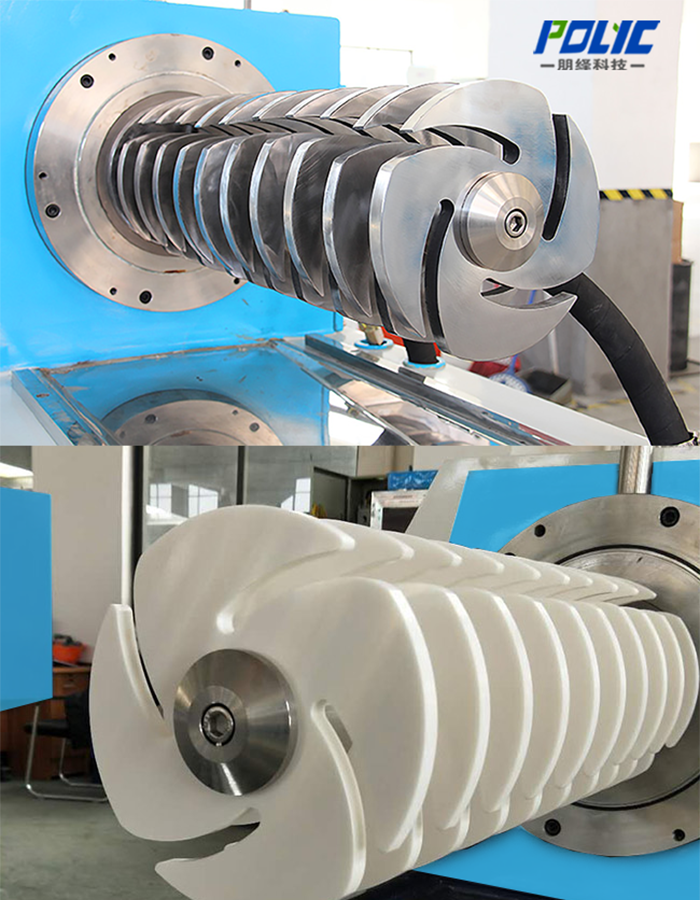

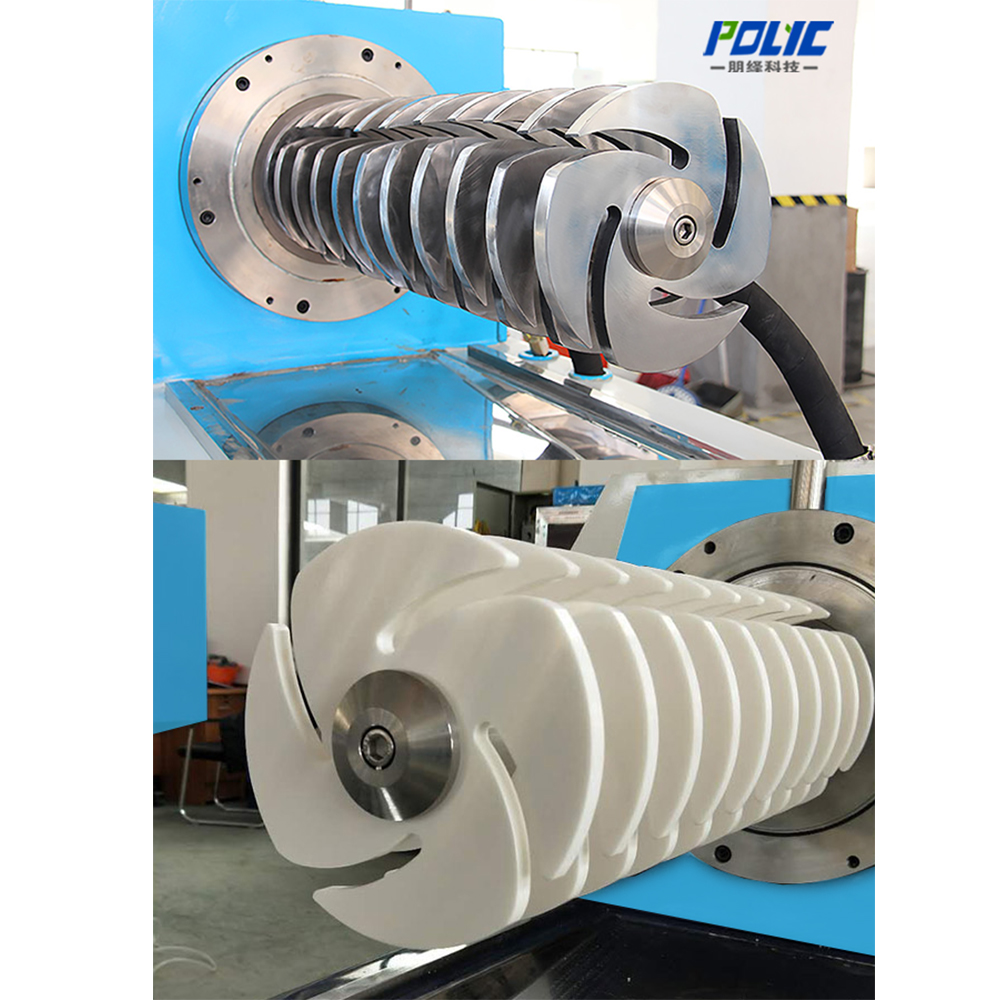

● Multiple material can be chosen for dispersing disc, catering to customer requirements for product color difference.

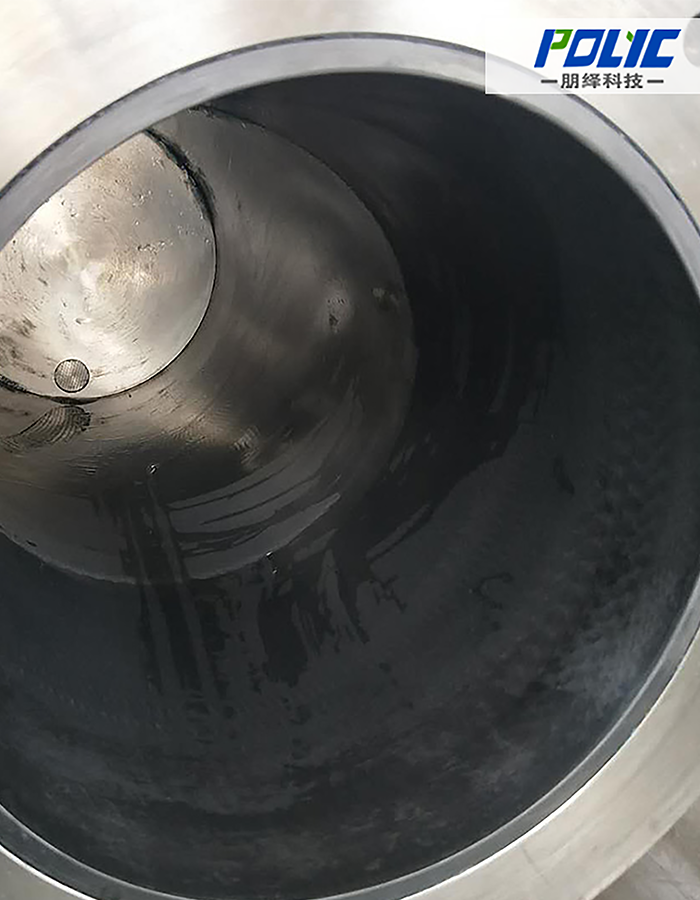

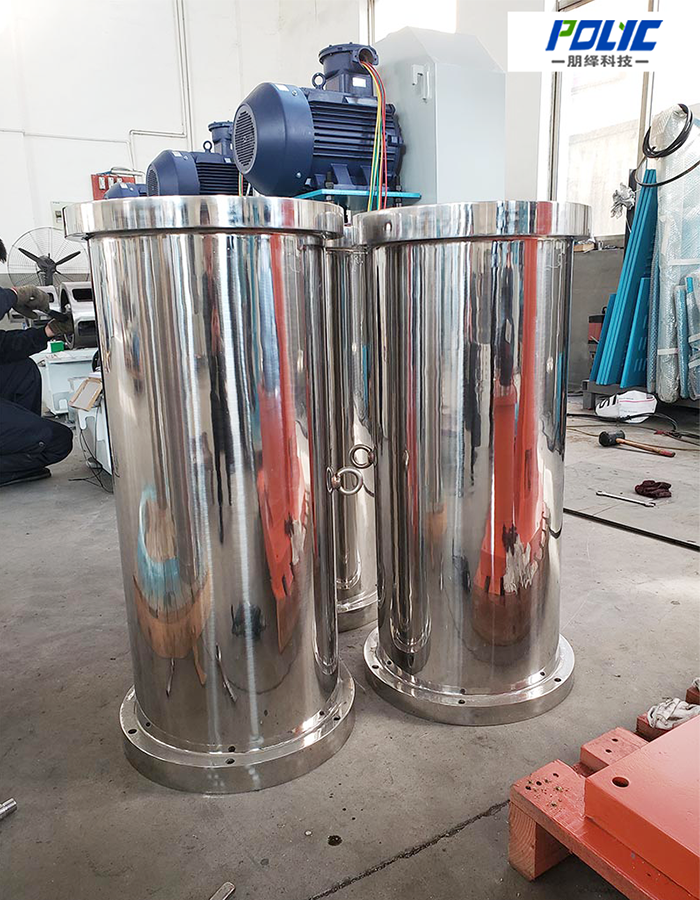

● Body is convenient to be disassembled, easy to clean and for different color products.

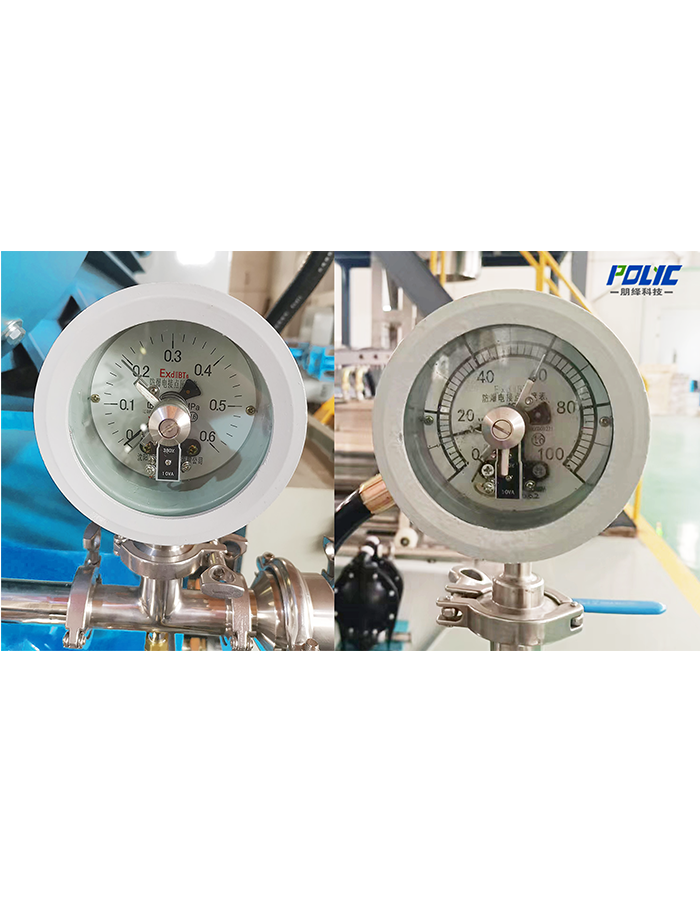

● Equip with temperature, pressure monitor and protection to ensure the quality of the finished product. It is with the advantages such as high grinding efficiency, good grinding fineness, wide. application and good anti-abrasiveness etc.
● Materials Viscosity : ≤20000 cps
● Production Capacity: 20-1000L

Product Parameters：

Parameter of PZD Dynamic Disc Type Horizontal Bead Mil

Parameter	Working Volume	Power	Batch	Cooling Water
Model	L	Kw	L	L/H
PZD5	5	5.5	100	500
PZD10	20	15	300	1000
PZD30	30	22	500	1000
PZD50	50	30	1000	1500
PZD100	100	45/55	2000	2000
