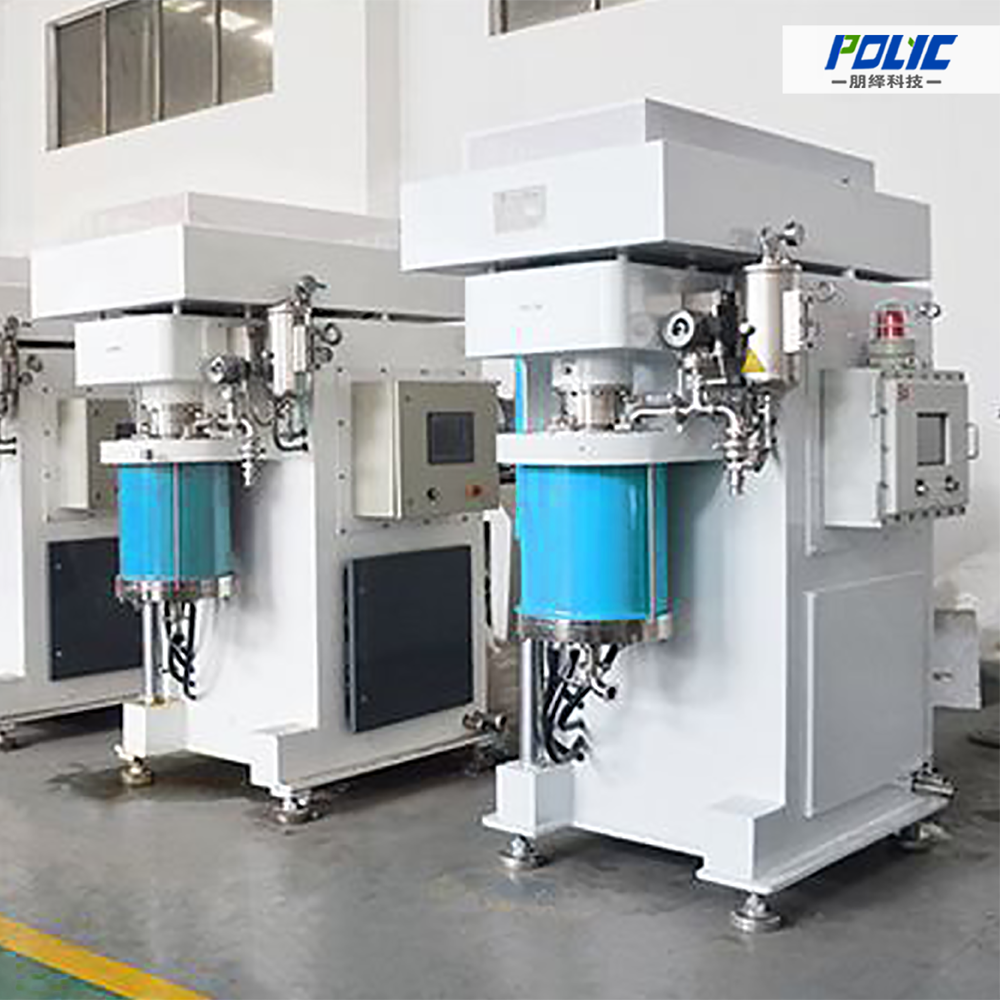

Vertical Pin Type Bead Mill（Sand Mill）

PZL Vertical Nano Bead Mill is a special mill used for difficult wet grinding tasks in recirculation mode. The vertical nano bead mill is mainly for middle and low viscosity of nanometer scale material grinding, the filter ink of liquid crystal display, inkjet, electronic pastes. The PZL vertical nano bead mill achievable particle size in the nano meter range for low to medium product, viscosity up to 1000 mPa.s

Email: export@polycmill.com

Tel: 8613816774633

Whatsapp: 8613816774633

Vertical Pin Type Bead Mill（Sand Mill）

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Product Features：

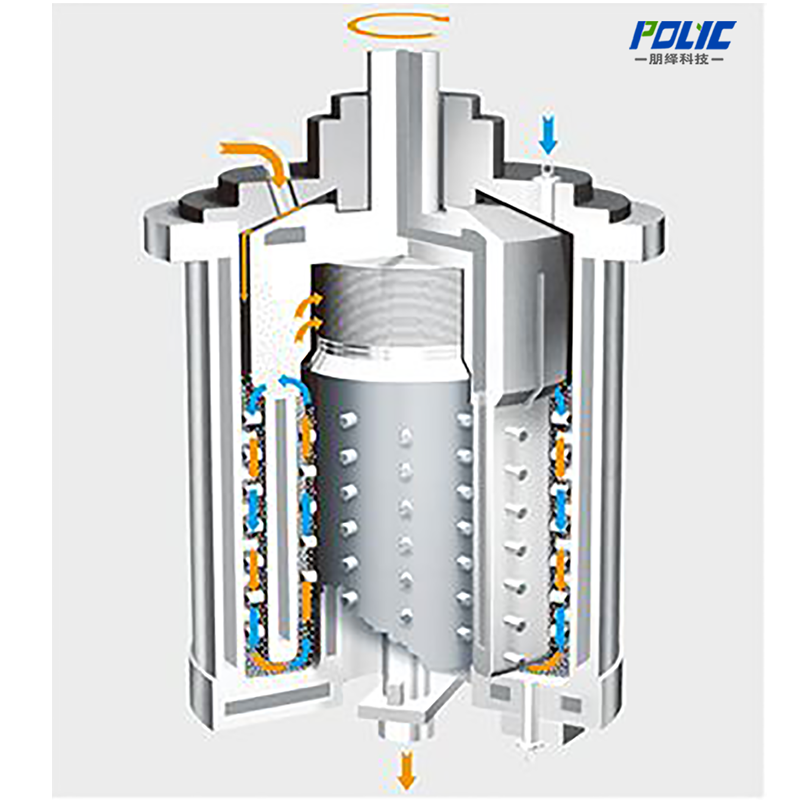

● Product inlet from the top of the PZL Vertical Nano Bead Mill

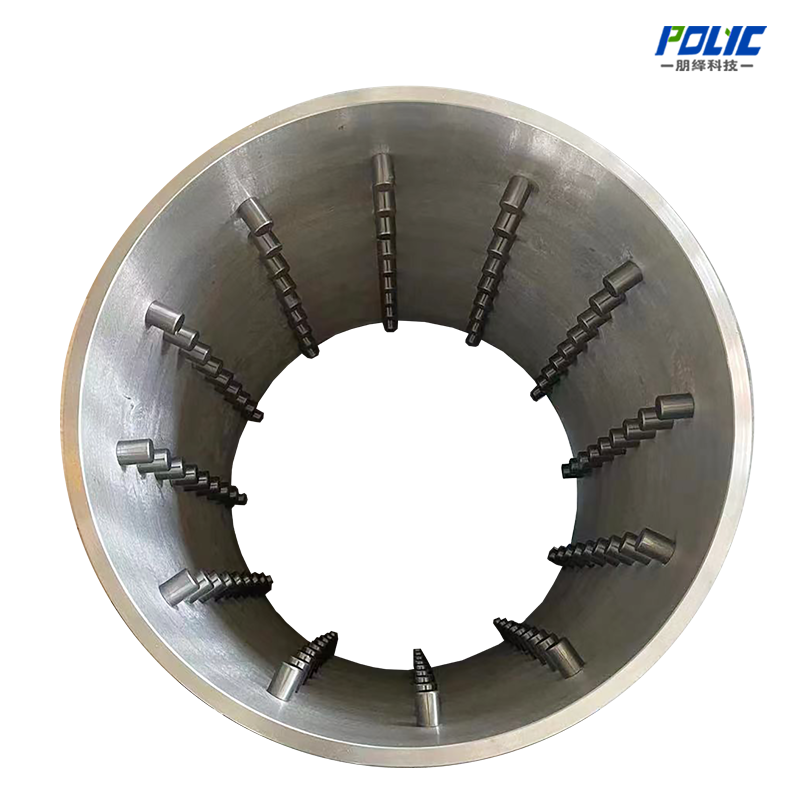

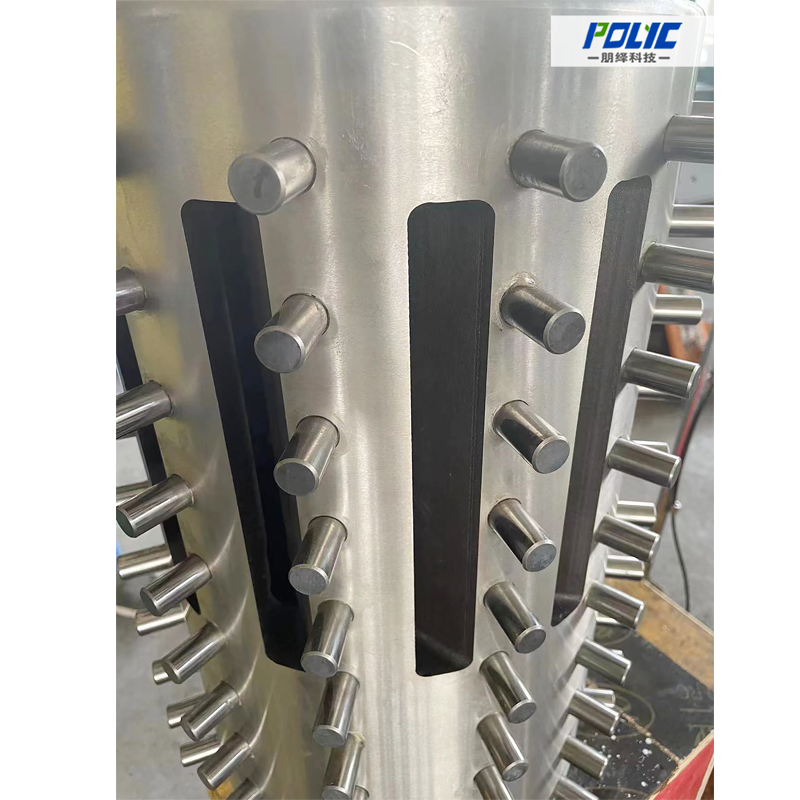

● Outer plus inner peg milling annulus

● PZL Vertical Nano Bead Mill power input by forced displacement of media in the range 0,2 - 1,5 mm

● Pre-dispersing zone

● Internal media recirculation

● Media separation by centrifuging

● High efficiency cooling of rotor, outer and inner stator + bottom

● Product discharge through removable protection screen on top of inner stator

● Removal of protection screen without draining mill

Product Parameters：

Parameter	Working Volume	Power	Batch	Cooling Water
Model	L	Kw	L	L/H
PZL02	0.2	2.2	1	500
PZL05	0.5	4	2	500
PZL2	2	7.5	20	2000
PZL5	5	18.5	50	2500
PZL10	10	30	100	3000
PZL20	20	45	200	5000
PZL30	30	55	500	5000
