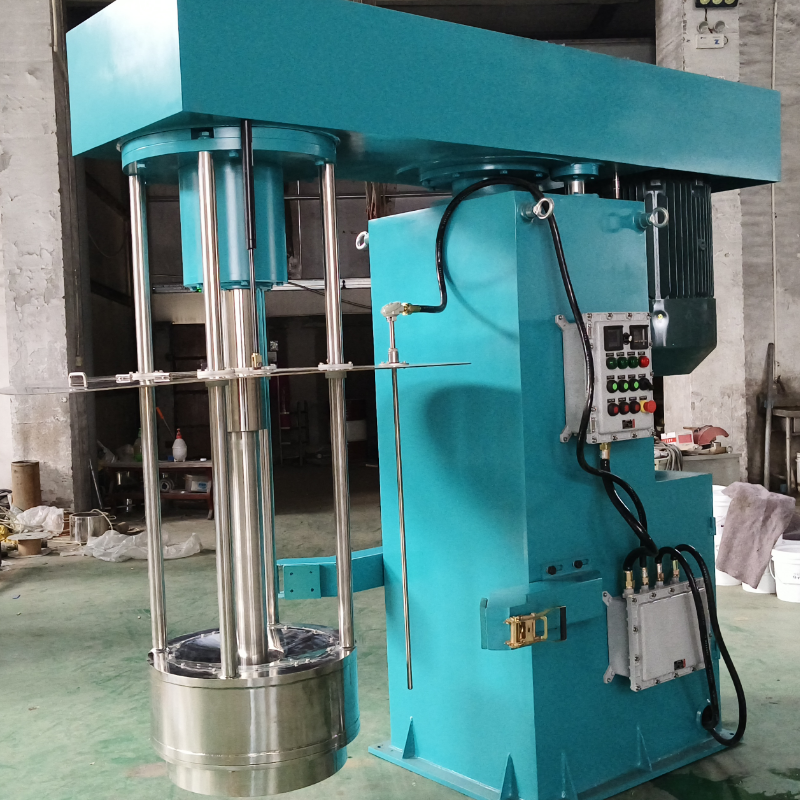

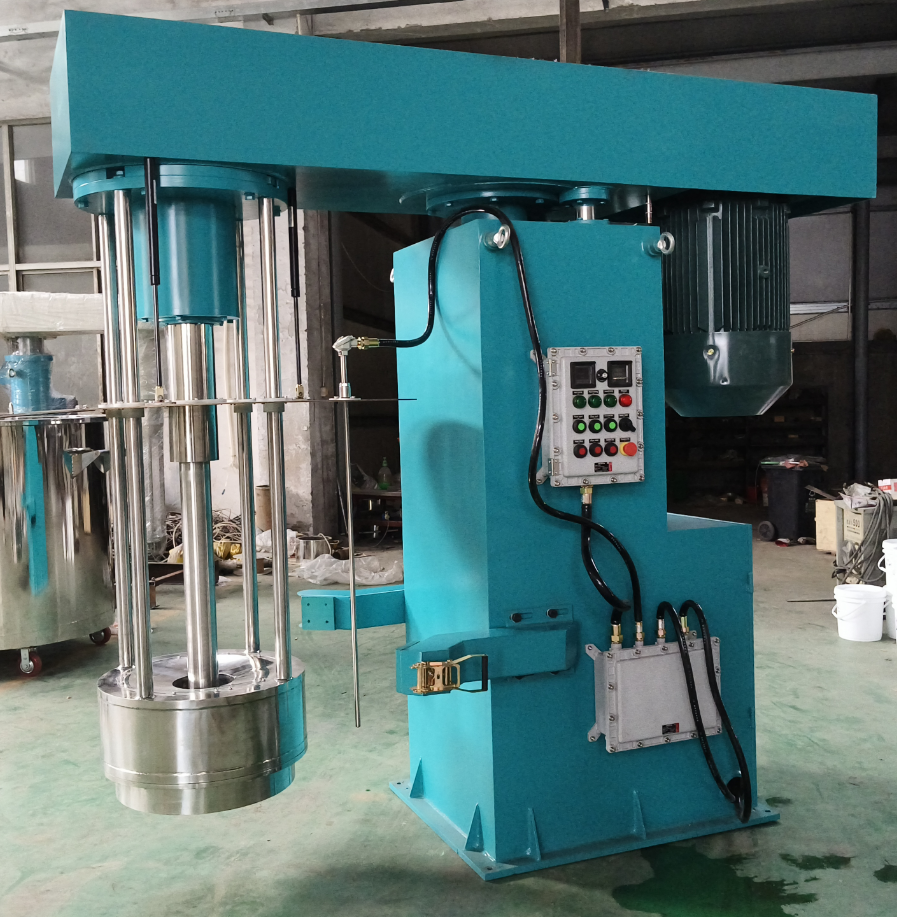

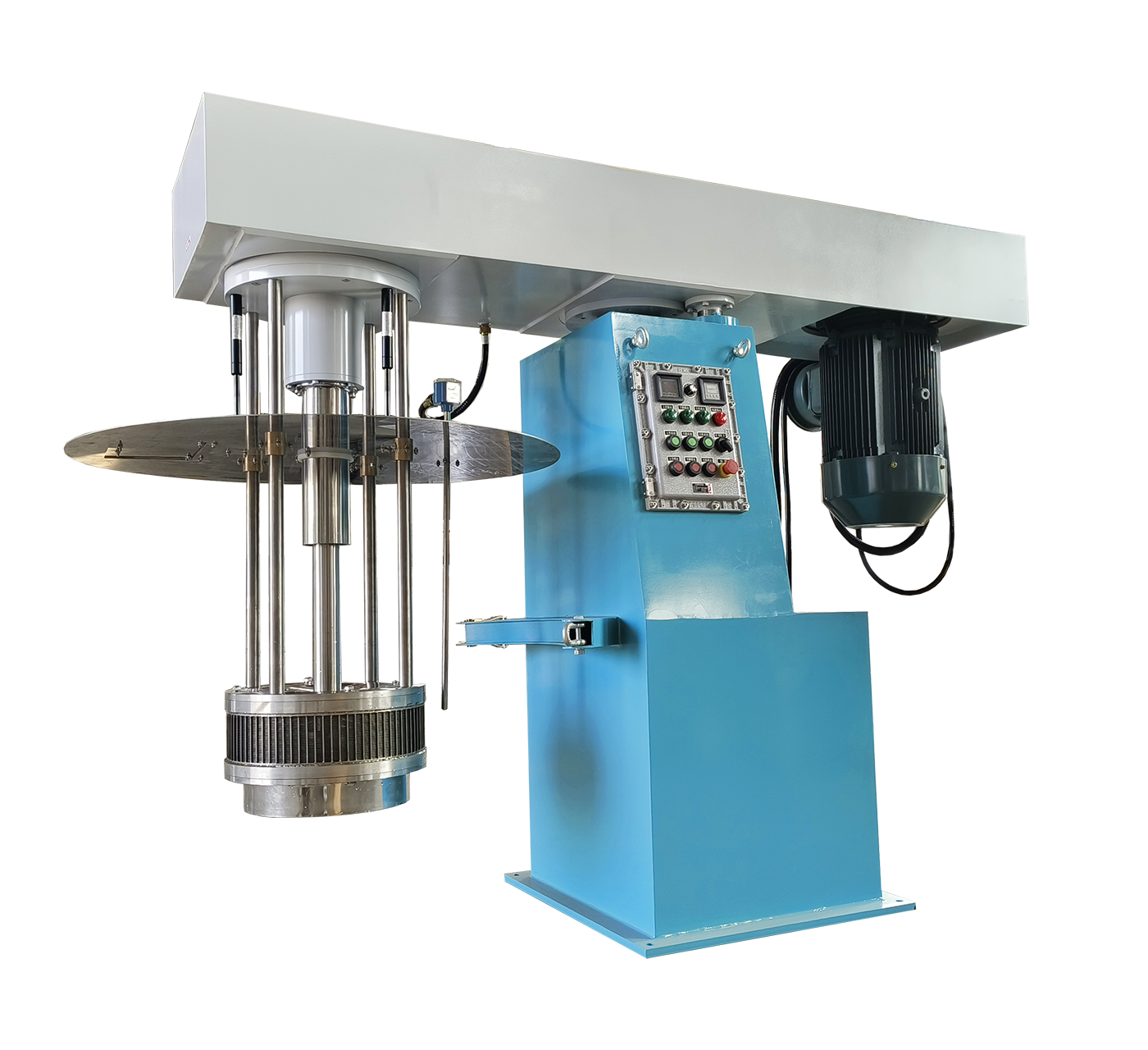

1000L Basket Mill For Pigment

PZM Basket Mill is a kind of multi-functional wet mill that combines dispersion and grinding. It is a continuous batch processing system. The optimized design for basket mill ensures that your materials pass through the high density dispersion zone within the milling chamber at a high frequency, as the most efficient in the market in terms of process time, total power consumption, consumable cost, and total operative cost. Our PZM basket mill with less clean-up and a reduction in waste solvents. Premixing, dispersion, and grinding are all accomplished in a single unit that requires less space, less time and less energy to achieve bigger results.

Email: export@polycmill.com

Tel: 8613816774633

Whatsapp: 8613816774633

1000L Basket Mill For Pigment

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Product Features：

1.Save your cost: Dispersing and grinding are finished in one machine and one container, no need extra pumps, piping, valves etc to .
2. Easy operation: The PZM Basket Mill is easy for cleaning, no residues, convenient product replacement.

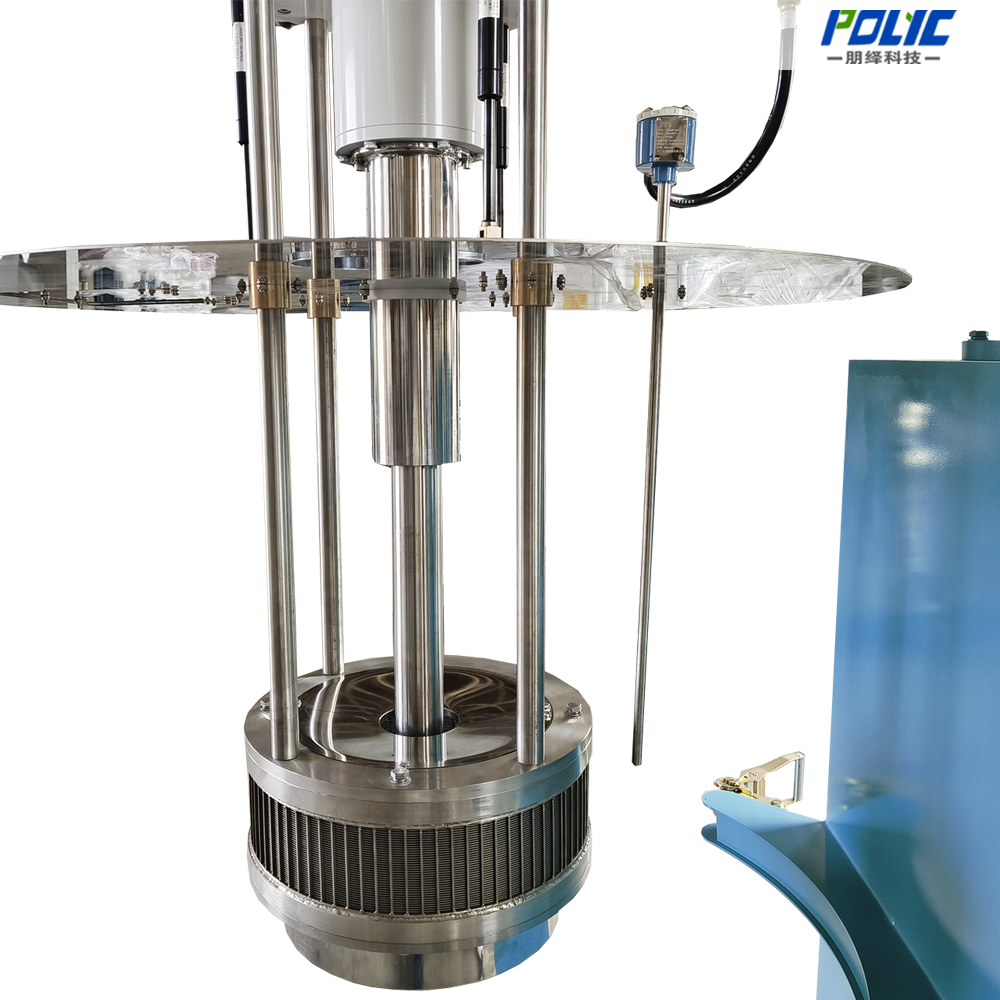

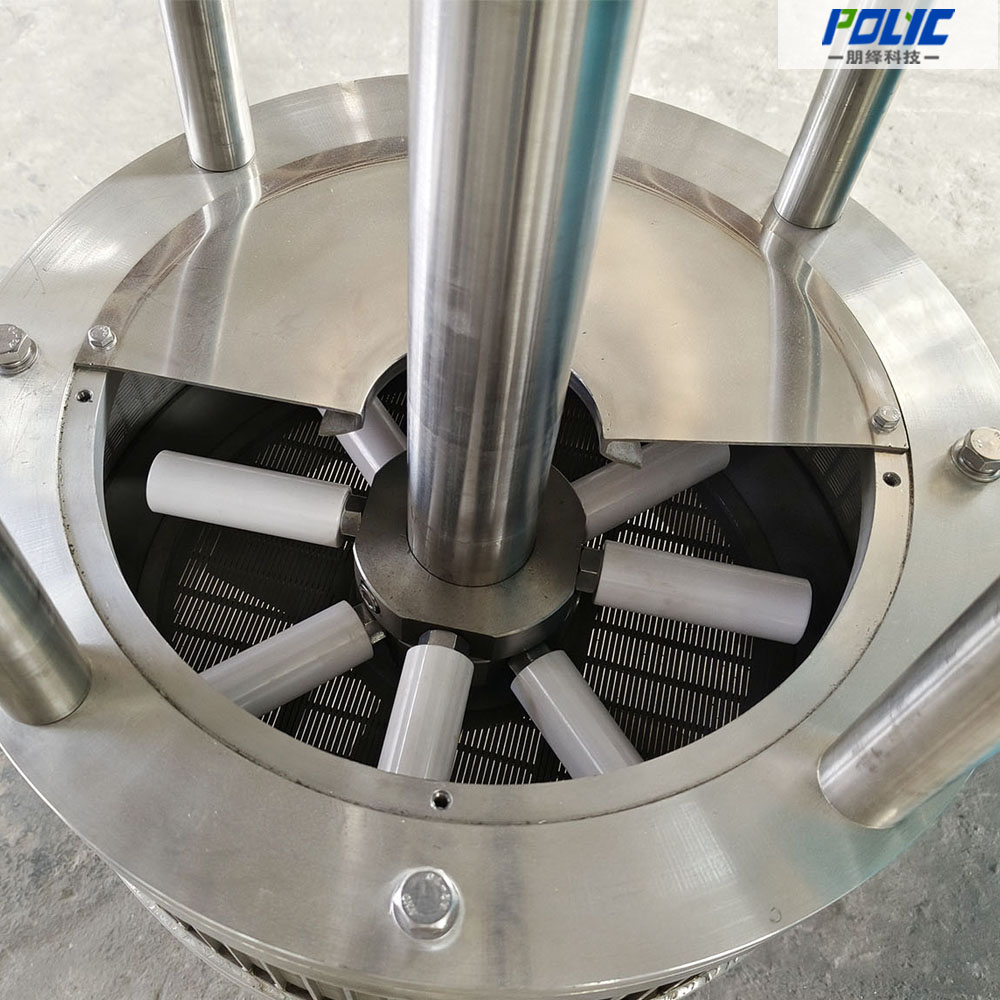

3. Little grinding media required. Excellent grinding efficiency and effect.95% purity ceramic beads of high density to obtain size particle homogeneous at the shortest period of time.
4.Can be customized: The basket grinding barrel can be customized with jacket for connection cooling water with cooling function. Equip with temp. sensor and temp. control system if material temp. reach to the max. pre-set data the basket mill will stop automatically
Double-walled container for cooling and heating.

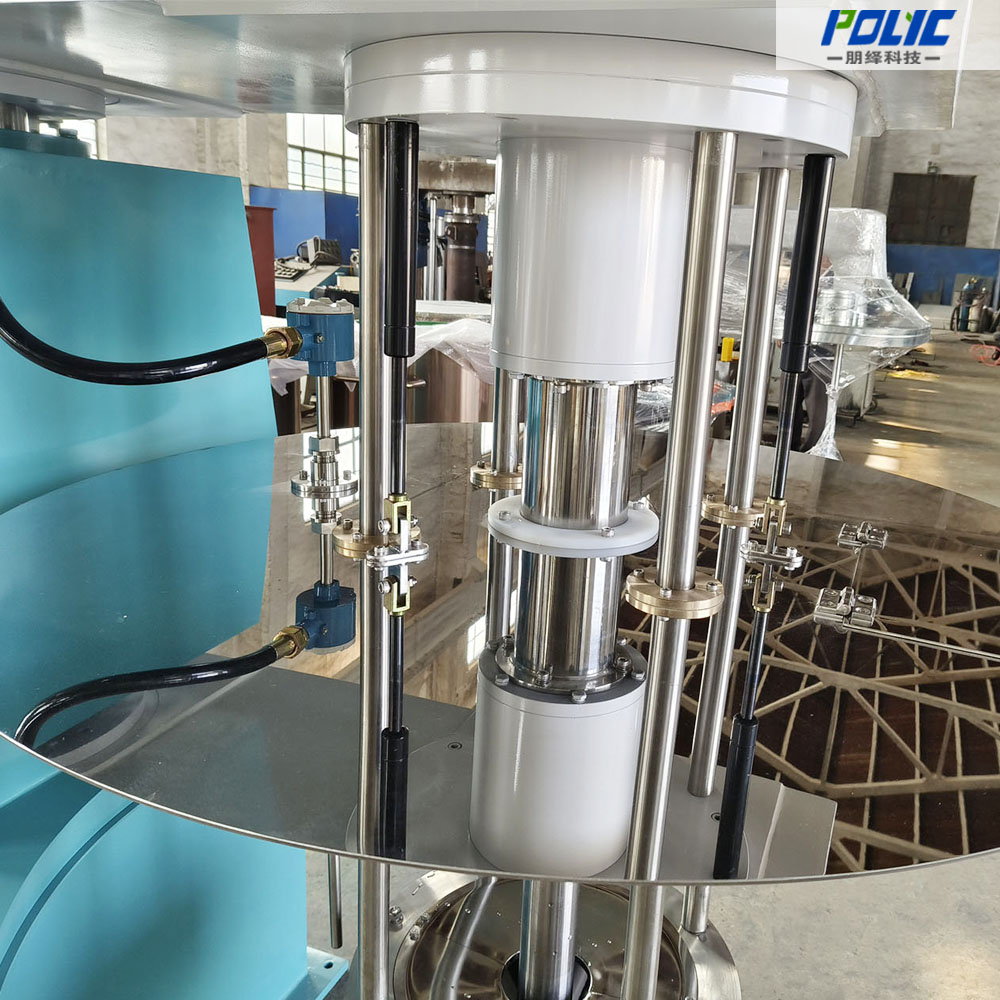

5. Can equip with tank fixed arm with safety device there is an sensor on tank fixed arm if tank not in position the basket mill can't work
6. Labor saving：Modular design of parts make the basket mill much more convenient to disassemble, maintain and overhaul, almost no need of professional maintainer.
7. Suitable handle materials Viscosity: ≤ 8000 cps
8. Production Capacity: 50-3000L/day (can OEM according to your requirement)

Product Parameters：

Parameter of PZM Basket Mil

Parameter	Power	Speed	Handling capacity	Basket Capacity	Lifting height
Model	Kw	(rpm)	L	L	mm
PZM50	2.2	0-1500	10-30	1	400
PZM100	4	0-1500	30-80	2	500
PZM150	7.5	0-1500	80-150	4	600
PZM200	11	0-1500	80-200	6	700
PZM300	15	0-1500	150-300	10	800
PZM400	18.5	0-1500	200-400	16	900
PZM500	22	0-1200	250-500	20	1000
PZM1000	30-37	0-1200	500-1000	30	1100
PSD1500	45-55	0-1000	1000-1500	70	1300
