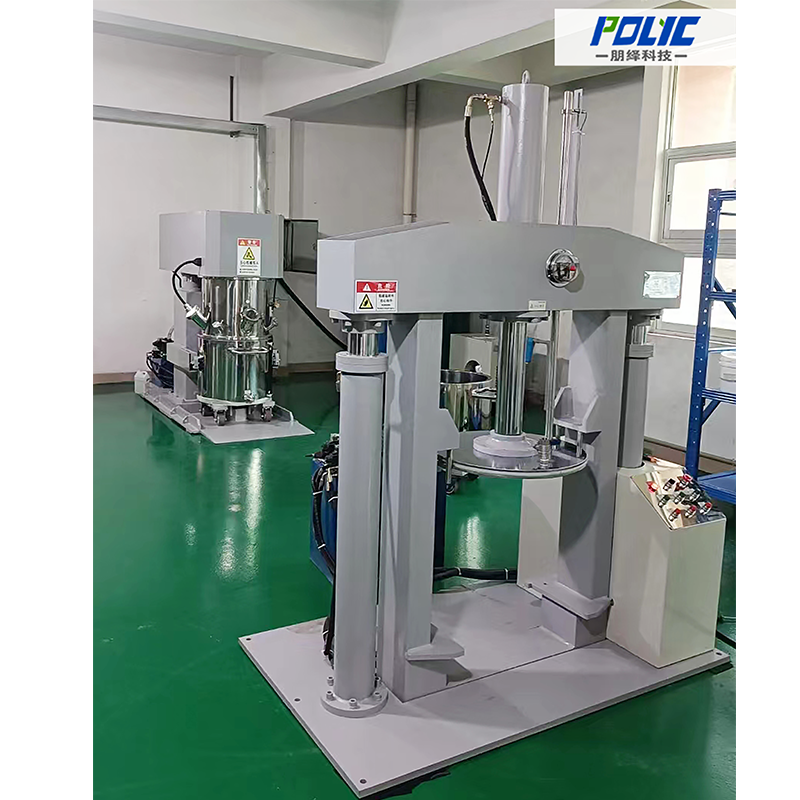

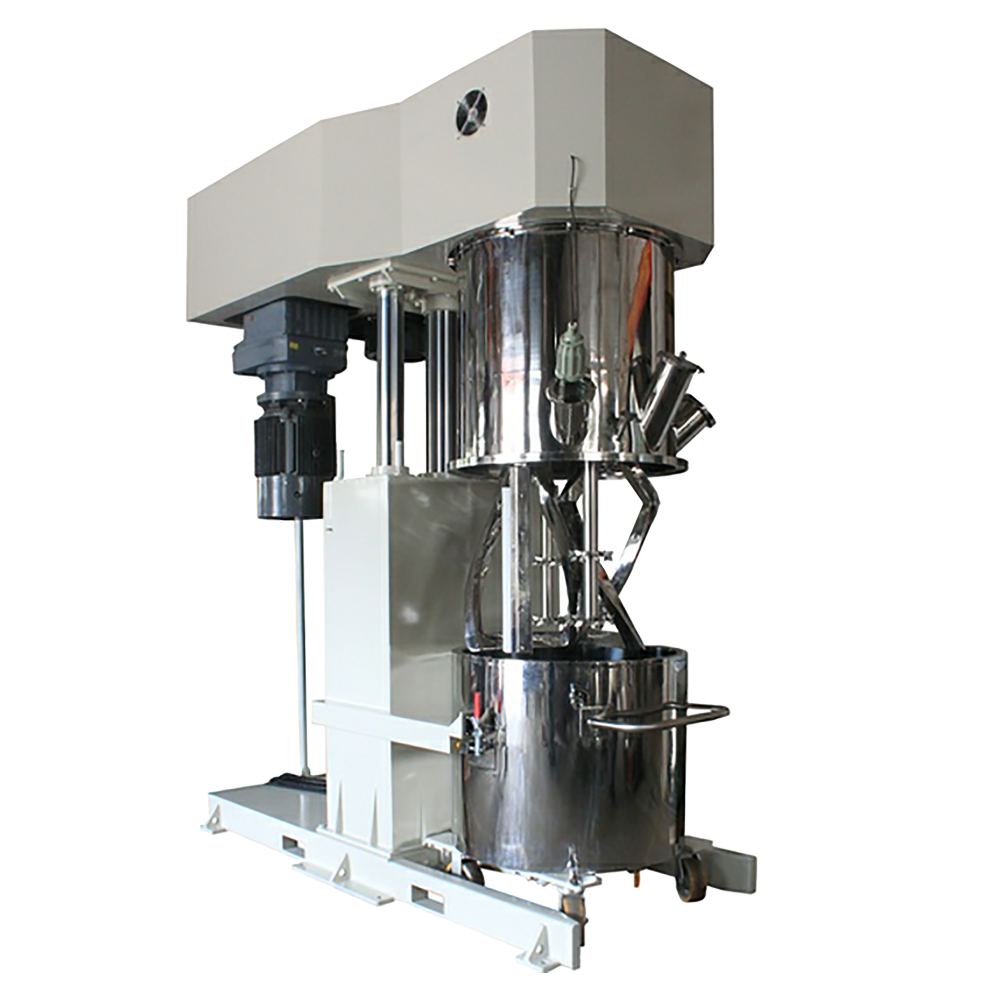

Planetary Mixer

The planetary mixer is specially for material with high viscosity upto 1,500,000 C.P.S. It is an high efficient, multi-purpose equipment integrating reaction, mixing, mixing and dispersion; The stirring paddle in the kettle rotates while rotating, so that the material flows up and down and around, so as to achieve the mixing effect in a very short time, there is no dead angle in the mixing process and the effect is more than ten times that of the ordinary mixer;

Email: export@polycmill.com

Tel: 8613816774633

Whatsapp: 8613816774633

Planetary Mixer

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Product Features：

● The stirring paddle in the kettle rotates while revolution, which make material flow around, so it can realize mixing (compounding) effect in short time;efficient mixing and kneading, mixing without dead angle, viscosity 0-1.5 million cps;

● Laboratory and industrial grade to 2000L processing capacity can be;

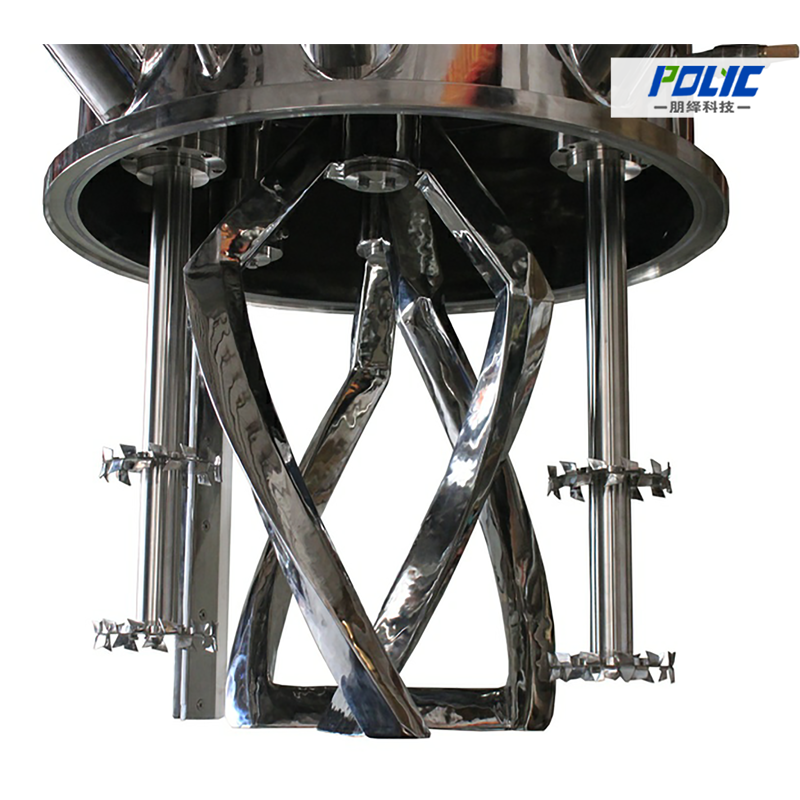

● There are various blades as frame, paddle and twist of dough frame for low speed blade can be chosen.

● Vacuum design ensure material work under sealed environment, Limit negative pressure -0.098-0Mpa, high vacuum retention;

● Heating means of kettle can be electrical heating, steam heating, hot water or oil circulation heating, intelligent temperature director can control temperature precisely.Temperature controllable, accuracy ±1℃, range: 0-220℃;

● Discharge method: extrusion discharge, positive pressure discharge, pump transport;

● Optional: Contact material (304/316L), contact material spraying, electrical control (explosion-proof type, control panel /PLC);

Product Parameters：

Parameter/Type		PMX-02L	PMX-05L	PMX-100L	PMX-200L	PMX-500L	PMX-1000L
Tank size (Dia.×Dep)		φ180×120/150	φ240/288×180	φ600×460/500	φ720/750×650	φ1000×380	φ1250×1000
Capacity(L)	Full volume	3/3.8	8/11.7	130/140	265/287	650	1227
	Working volume	2	5	100	200	500	1000
power for dispers (Kw)		0.37~0.75	0.75~2.2	4.0~11	11~22	22~45	37~75
dispersing speed on own axis (rpm)		0-3000	0-3000	0-3000	0-2500	0-1500	0-960
Power (Kw)		0.37/0.75	0.55/1.5	4.0/11	5.5/18.5	15/37	22/55
Agitating speed on own axis (rpm)		0-100	0-100	0-100	0-80	0-60	0-50
Orbital/scraping speed (rpm)		0-60	0-60	0-60	0-50	0-40	0-30
Vacuum (Mpa)		-0.098～-0.08			-0.098～-0.08
