Hydraulic Discharging Machine



Our PHD Hydraulic Discharging Machine is also called Extruder is a special helpful machine which matches with high viscosity planetary mixer, double shaft mixer and multifunction mixer, can realize extrusion, manual filling and transmission of high viscosity material. It can realize convenient discharging material out for high viscosity material.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description

Product Features:



  1. The hydraulic discharging machine must match the mixing vessel. The seal ring of the cover much match the mixing vessel well to push the materials inside the mixing vessel out under the action of the oil cylinder.
  2. The hydraulic discharging machine takes the hydraulic oil as a driving source. It is a piece of equipment with big motion energy, easy operation, compact design and easy to clean.
  3. The hydraulic discharging machine is suitable for discharging materials with viscosity from low to high. The viscosity range can be around 10,000cp-1,000,000cp. It can greatly improve filling progress for the high viscosity products.
  4. 4. It is widely used for high viscosity of the material after mixing such as putty, glue, adhesive, silicone sealant, Silicone structural adhesive, black glue, weather-resistant adhesive, etc. high viscosity materials.



Product Parameters:



Parameter of PHD Hydraulic Discharging Machine

Parameter/Type

Motor Power
Kw

Tank Diameter
mm

Disc Diameter
mm

Max. lift
mm

PHD900

4

900

900

1150

PDH1000

4

1000

1000

1150

PDH1100

5.5

1100

1100

1250

PFDH1200

5.5

1200

1100

1250



Our  Advantages:

REAL  MANUFACTUREN

24  HOUR  ONLINE

CUSTOMIZABLE

30-45 DAYS FAST DELIVERY

STRICTLY QUALITY CONTROL

3 YEARS WARRANTY

Product Details :

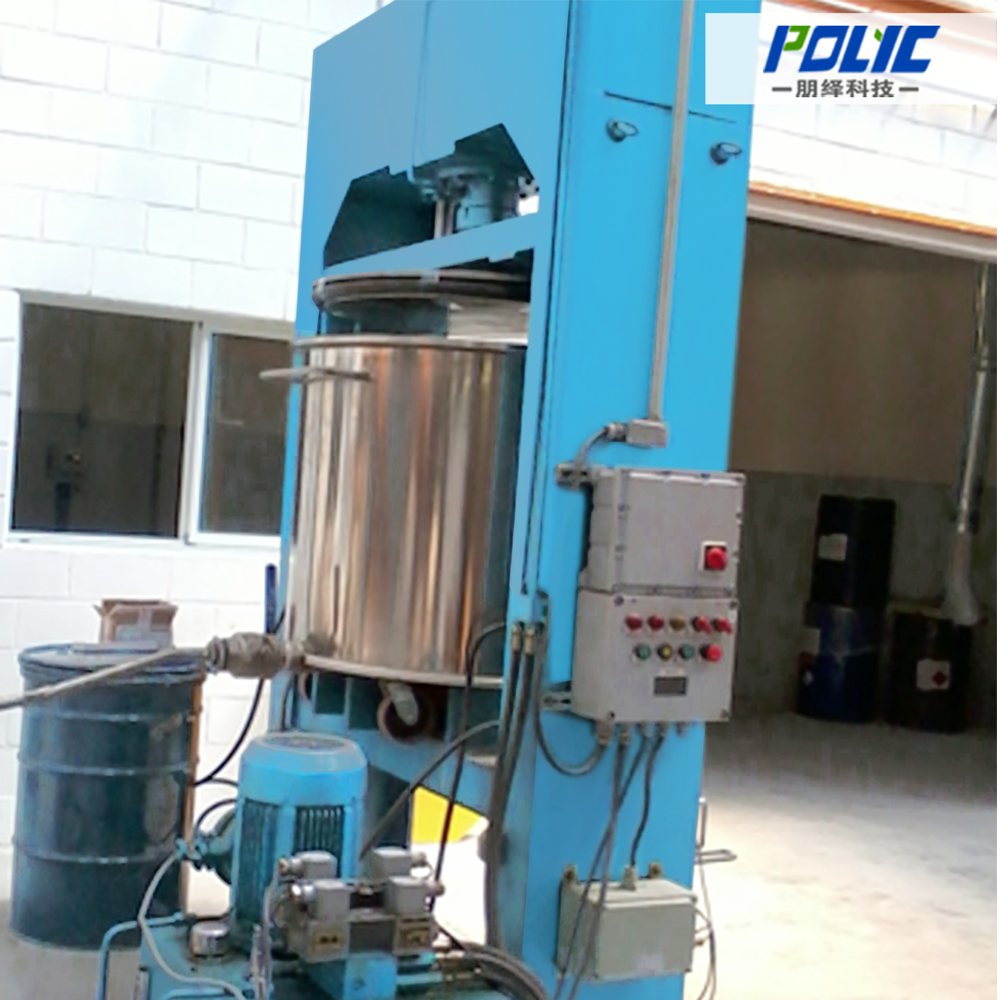

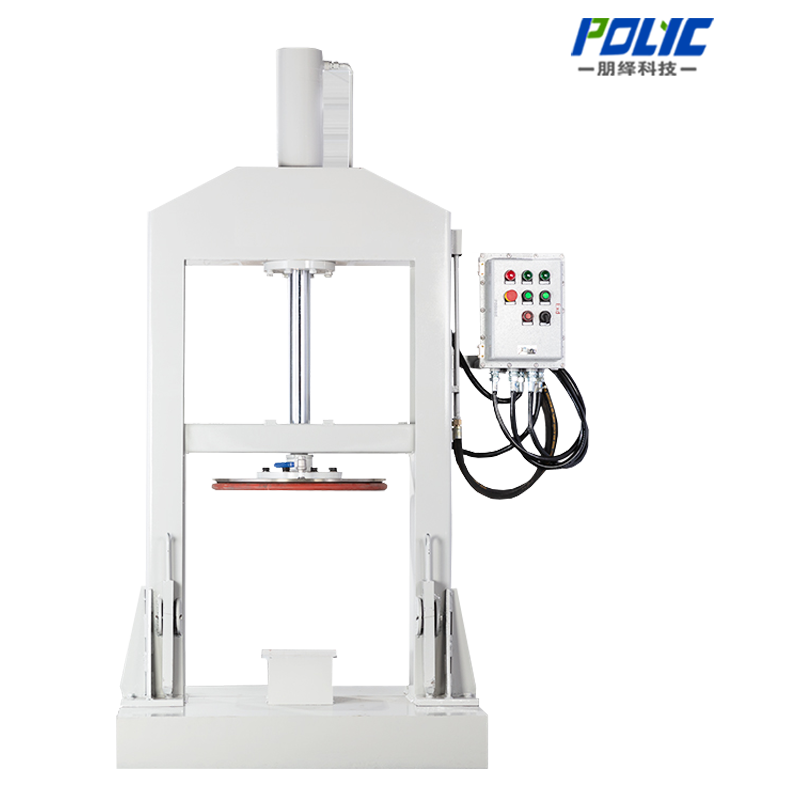

  • Completed Discharging Machine

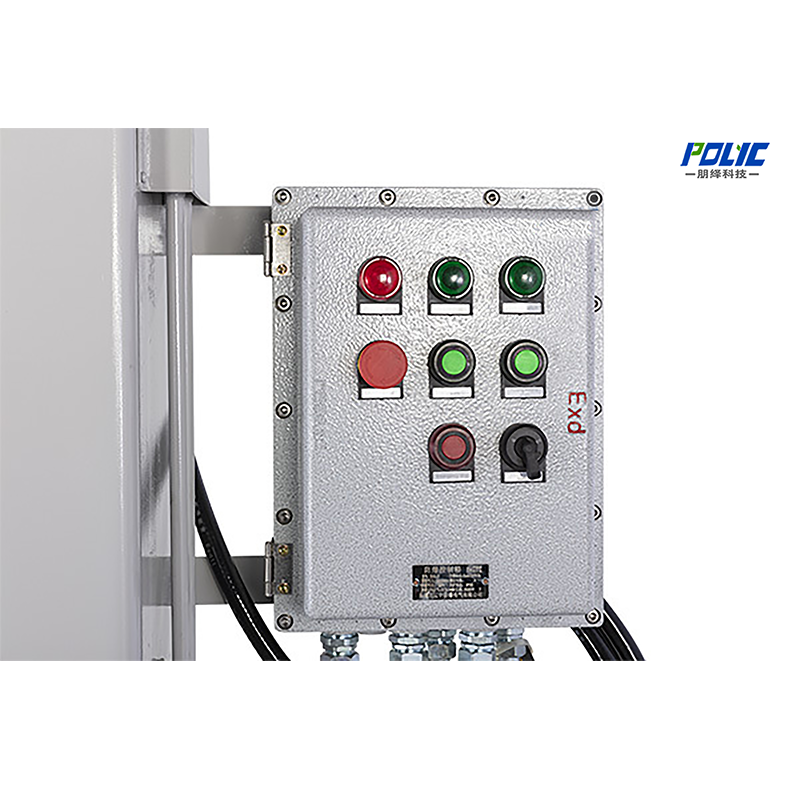

  • Control Panel
  • Extruder with mixer

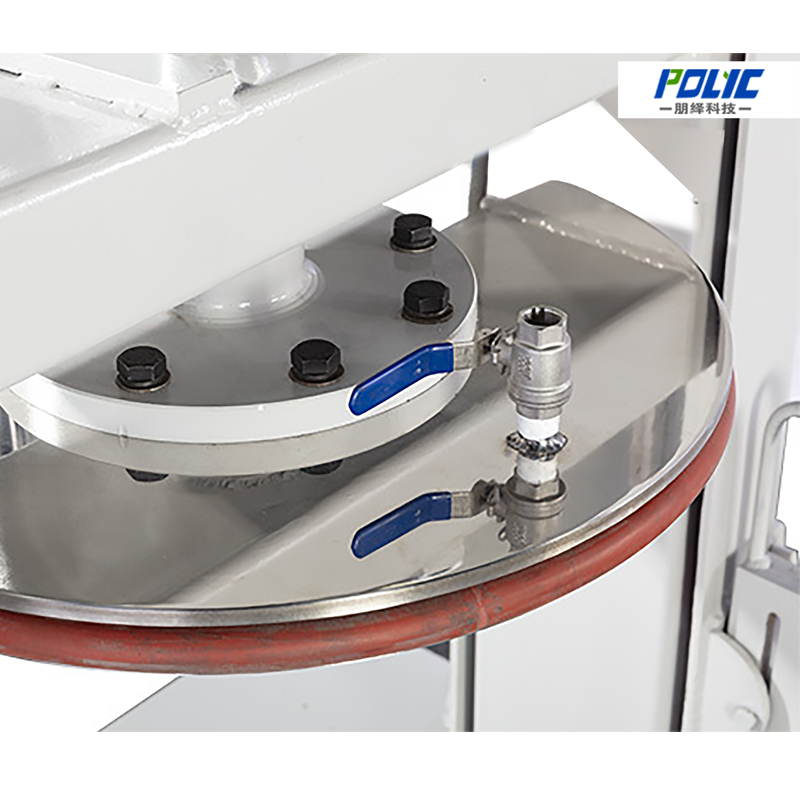

  • Pressing plate with O ring



Application :



  • Addhesive
  • Car Glue
  • Lithium Paste
  • New composite material
  • Pharmaceuticals industries
  • Plasters
  • Sealant
  • Wall Putty

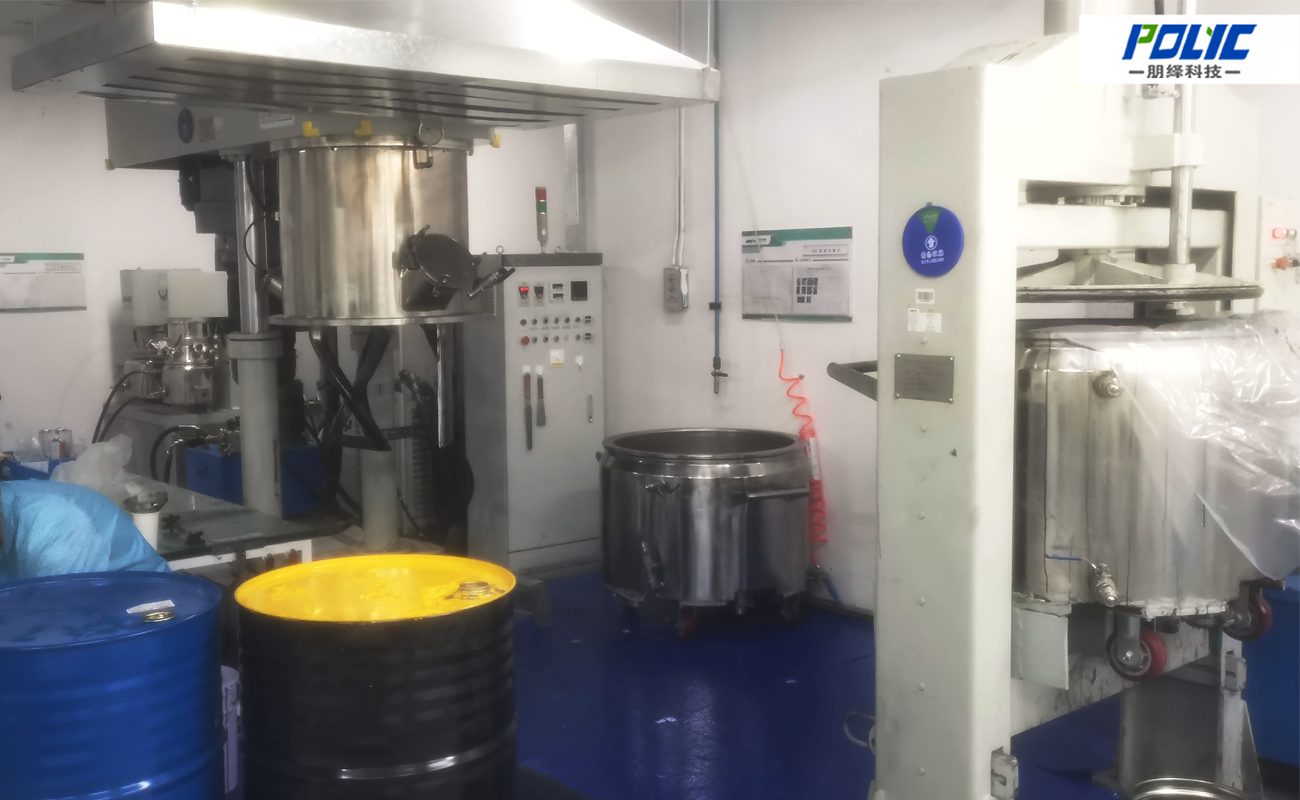

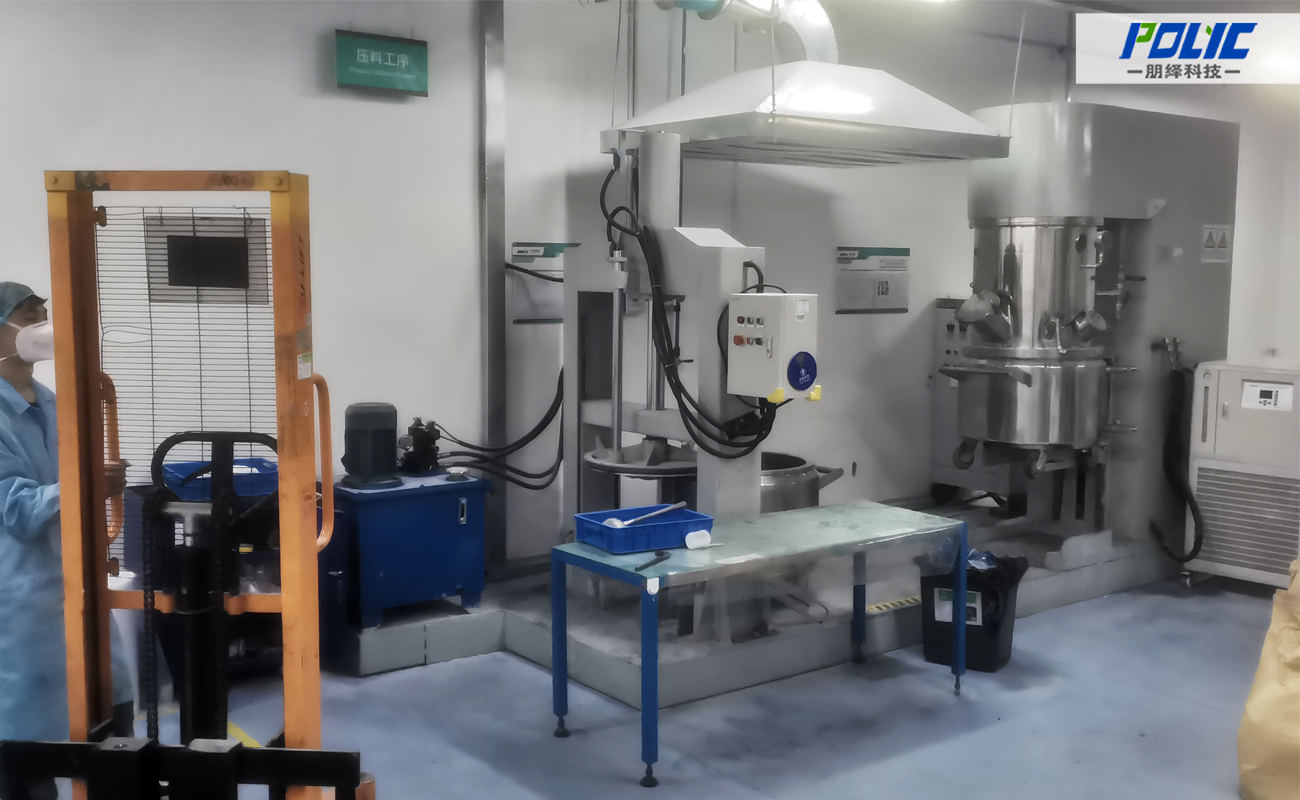

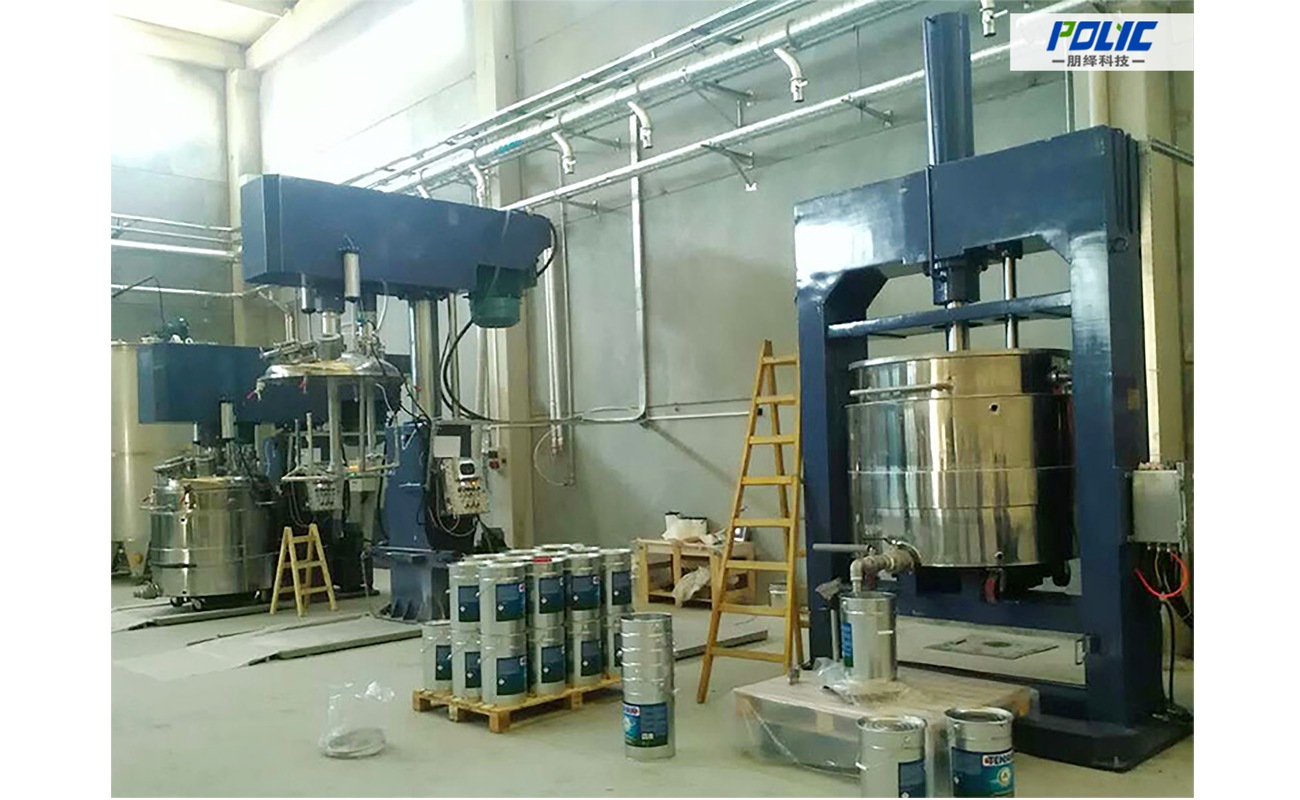

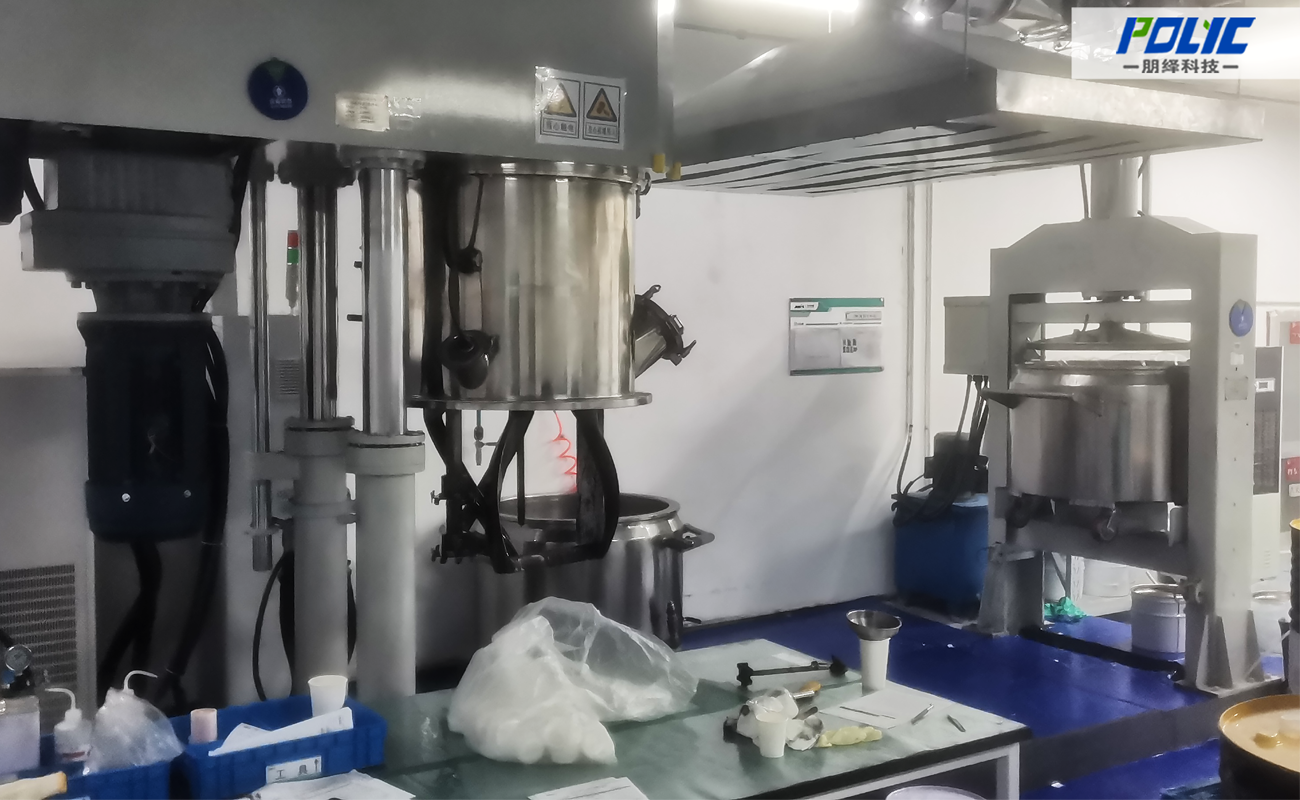

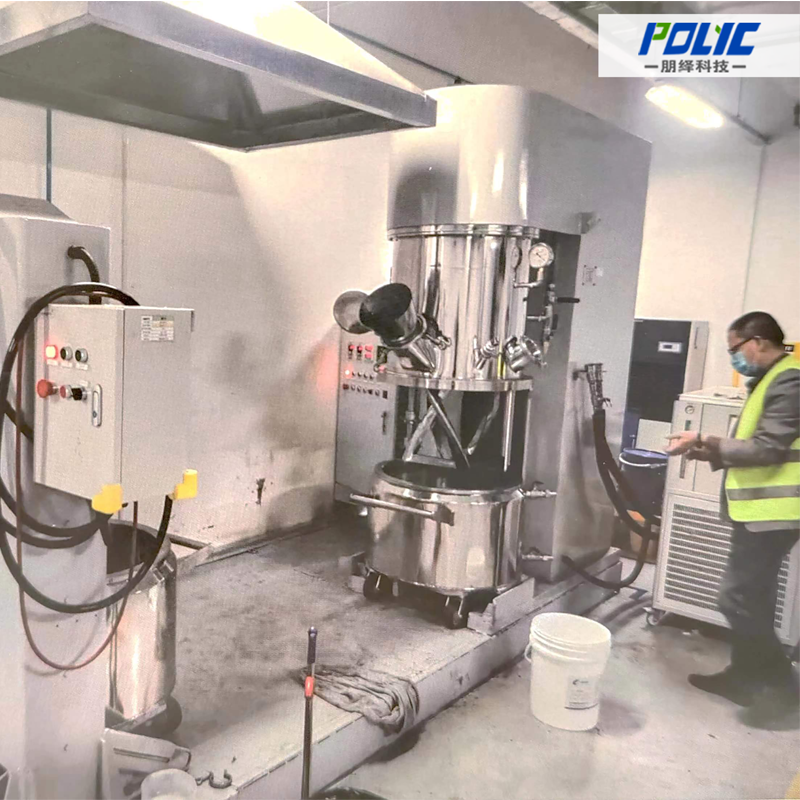

Project Cases:
