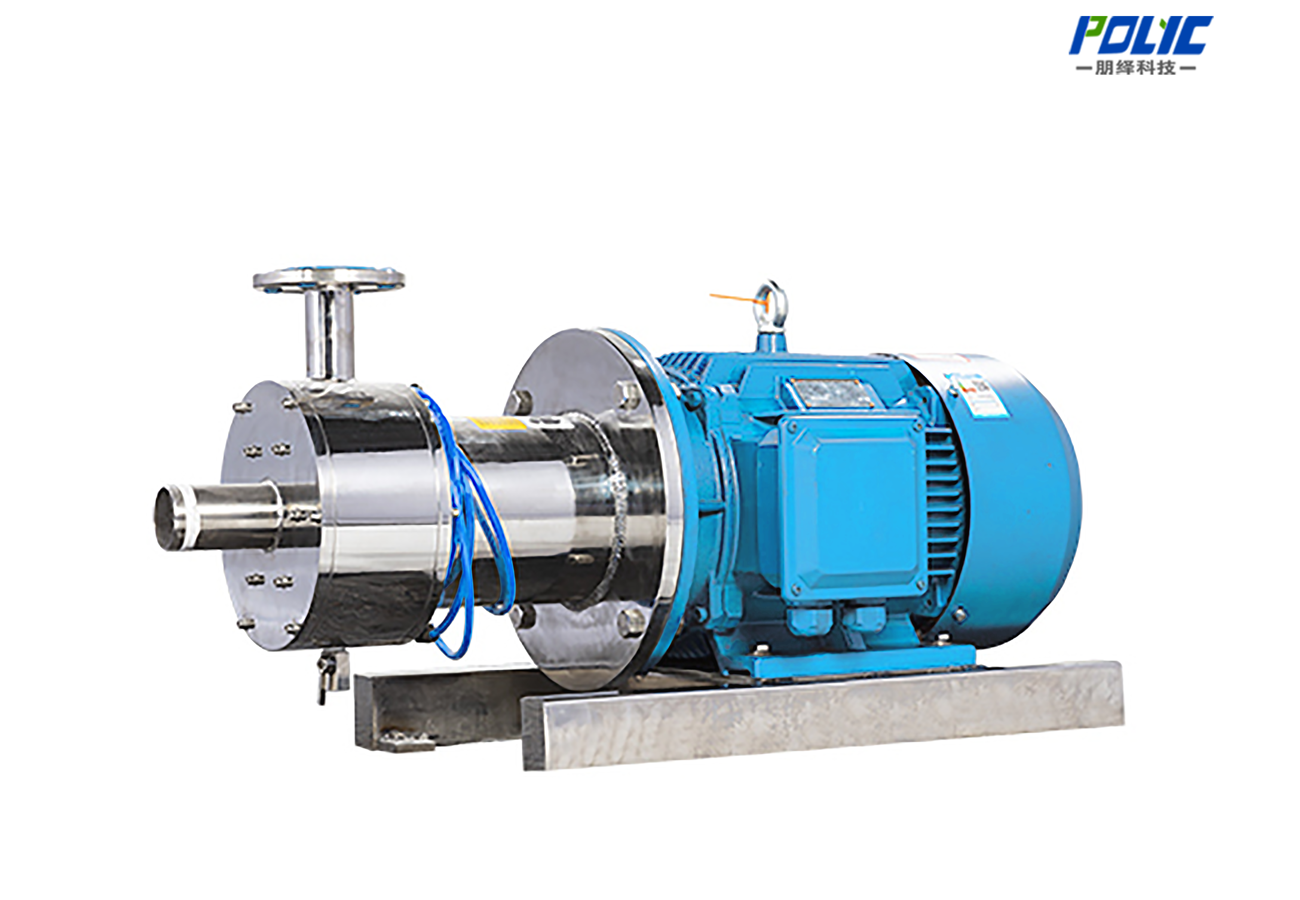

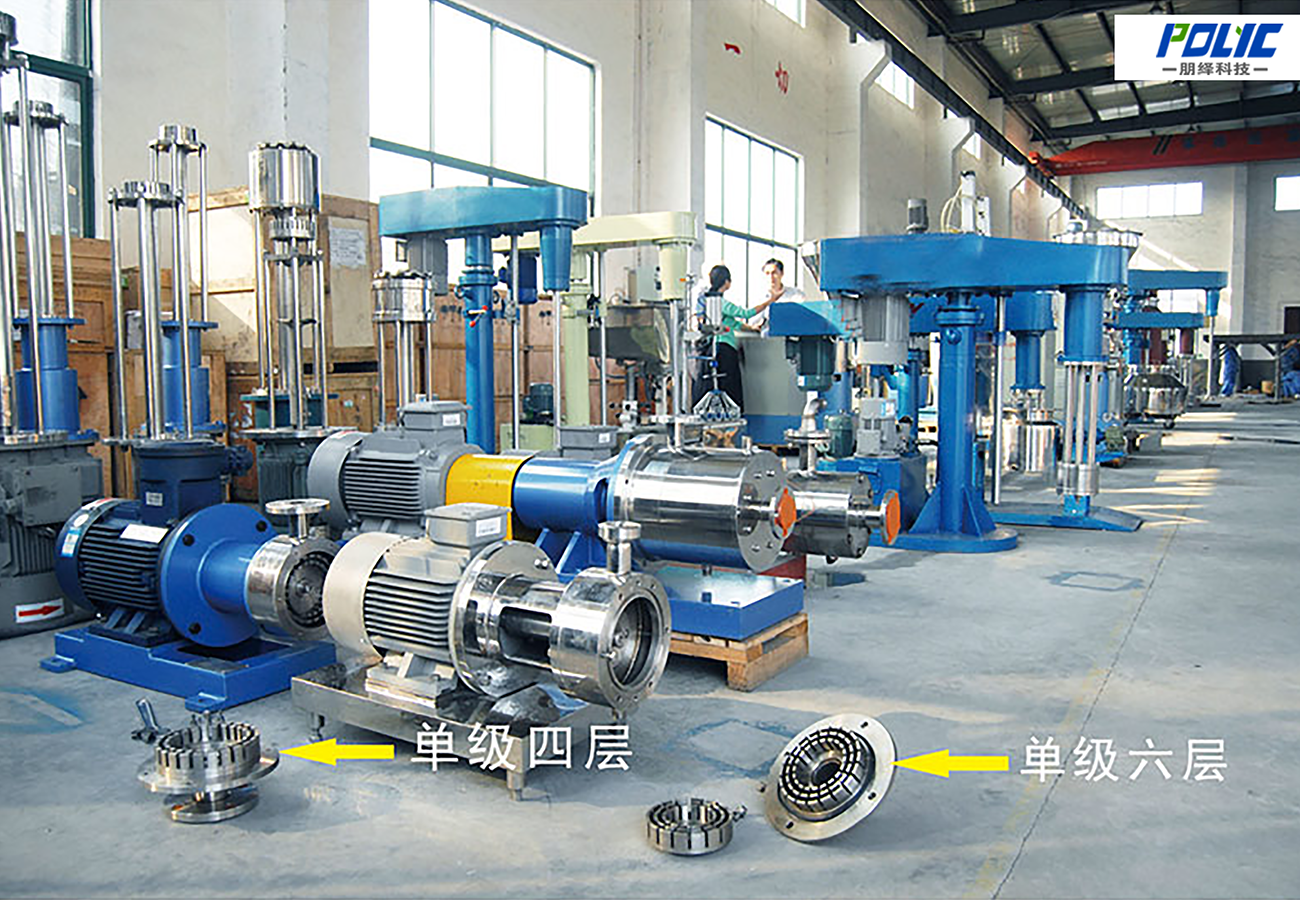

Pipeline High Shearing Emulsifier Pump

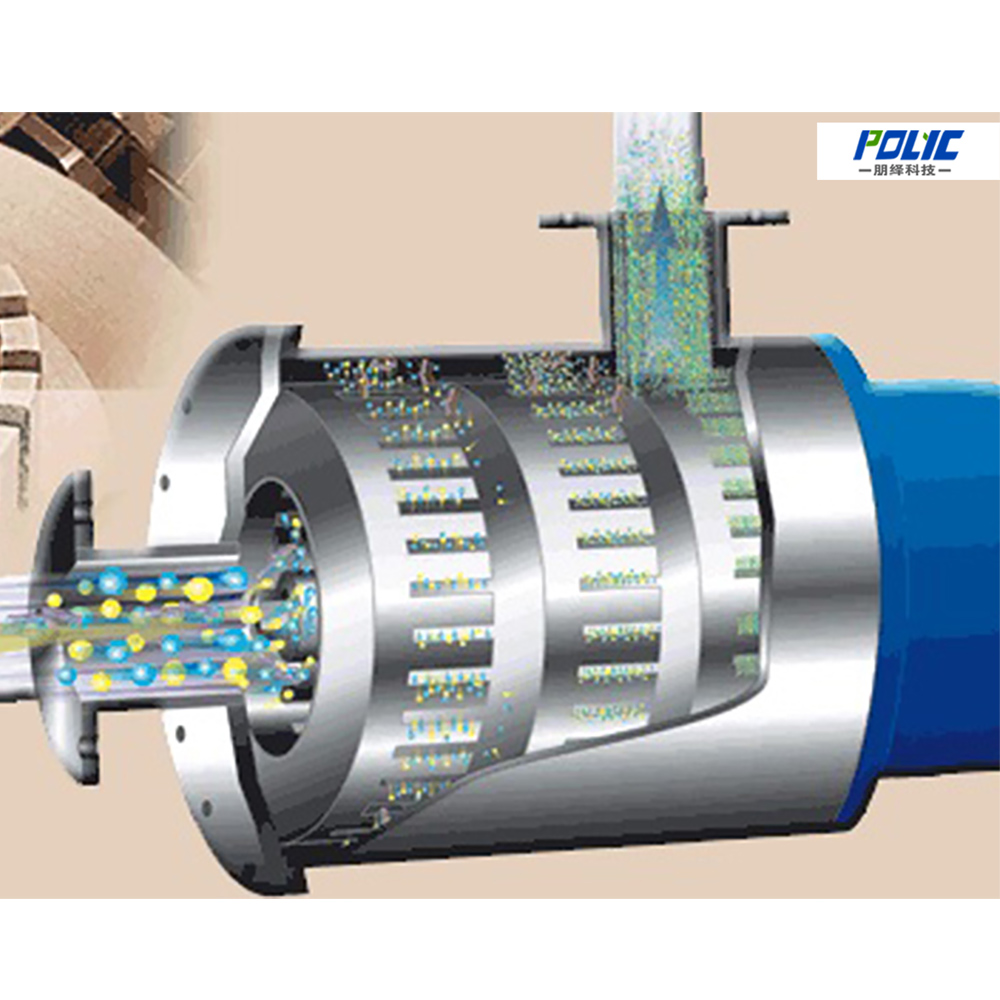

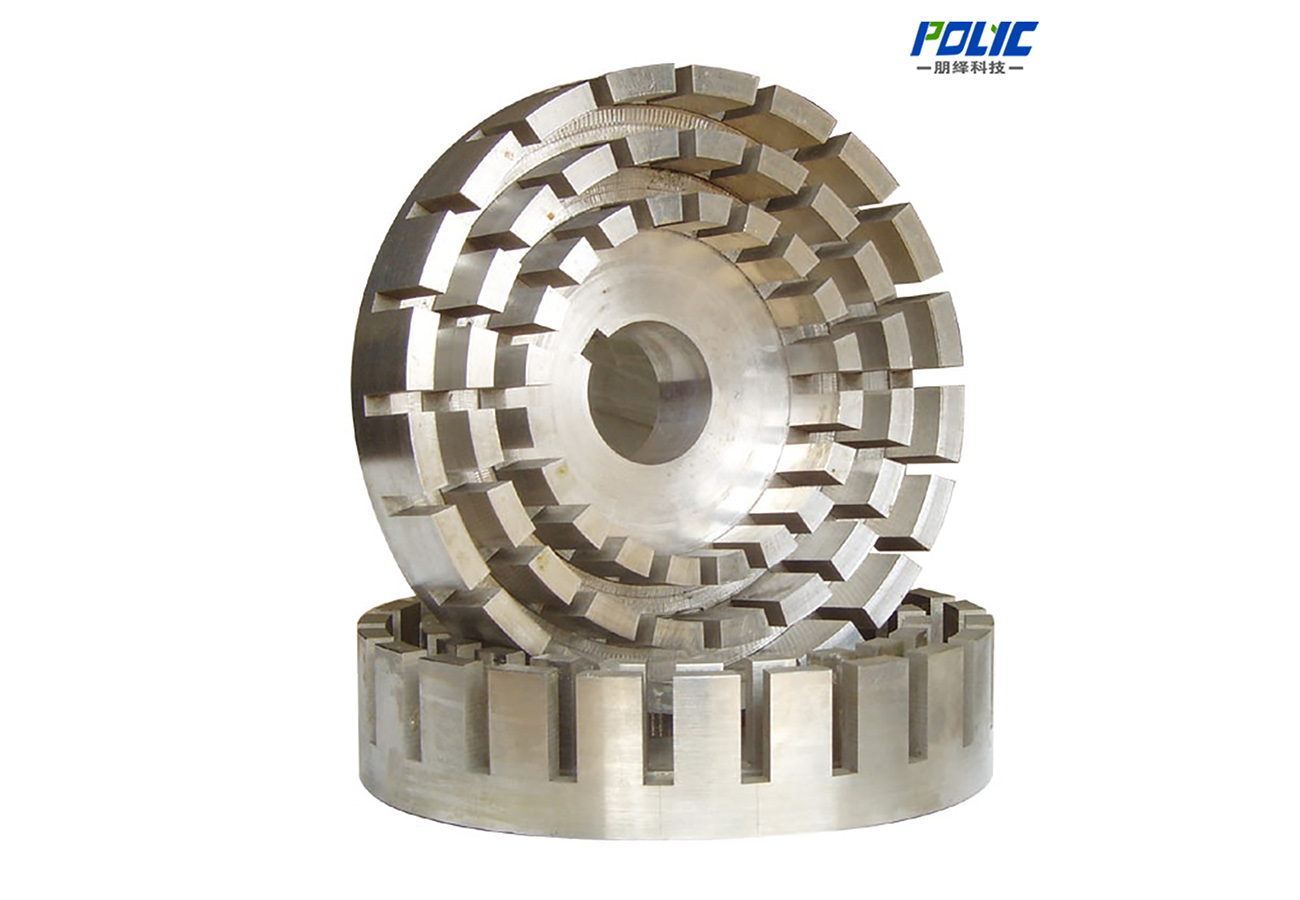

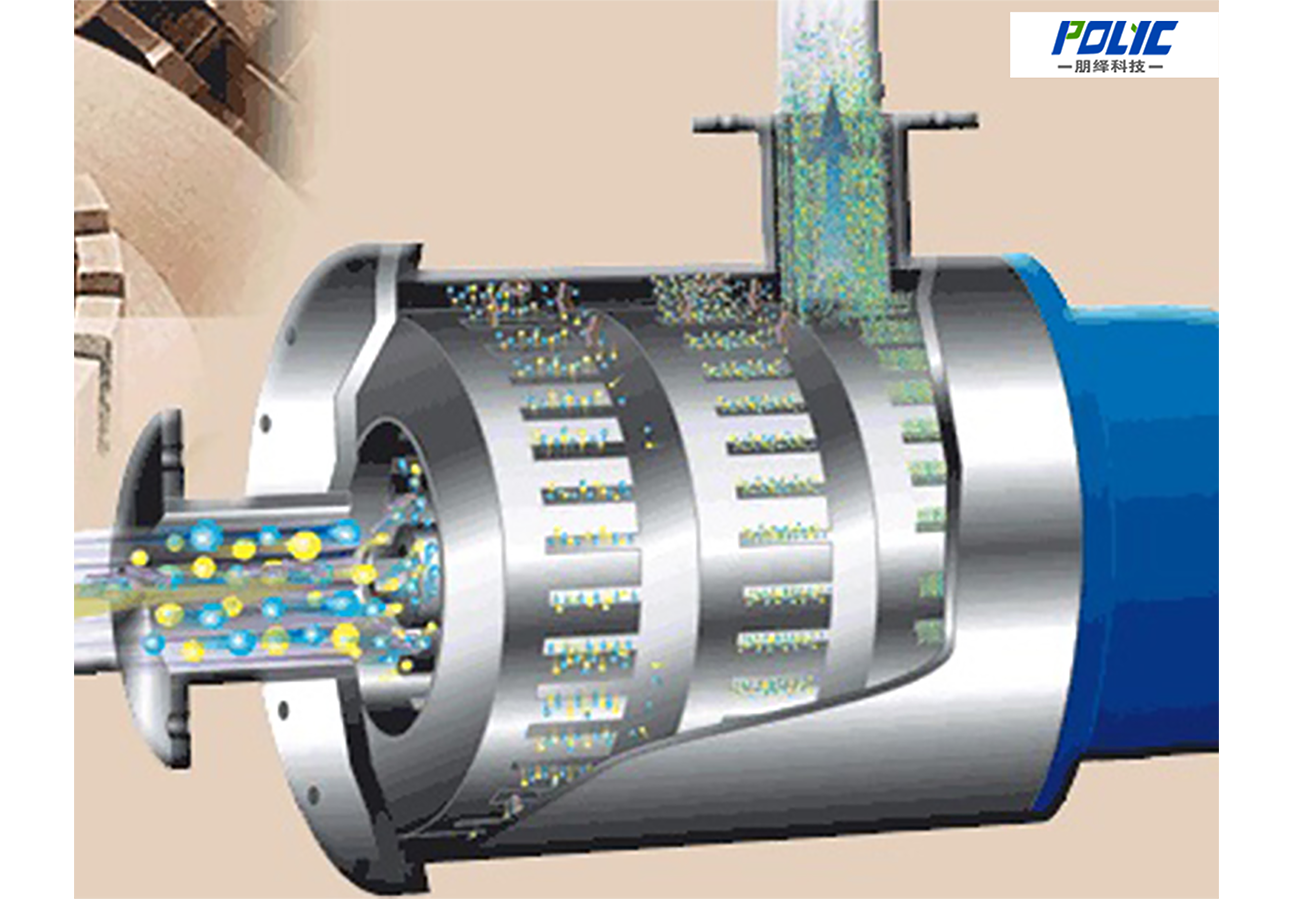

Our PWR Pipeline High Shearing Emulsifier Pump effectively, quickly and evenly disperse a phase or phases to another consecutive phase, usually, these phases are dissolvable to each other. The rotor revolves quickly and strong force is produced through high tangent speed and high frequency mechanical effect, therefore, the material in the narrow slot among stator and rotor receives strong forces from mechanical and liquid shearing, centrifugal force, pressing, liquid fraction, clashing, tearing and rush water.

Email: export@polycmill.com

Tel: 8613816774633

Whatsapp: 8613816774633

Pipeline High Shearing Emulsifier Pump

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Product Features：

● Our Pipeline High Shearing Emulsifier Pumpis suitable for continuous production of industrialized assembly line

● Small diameter range and highly even

● Time saving, highly efficient and energy saving

● The Pipeline High Shearing Emulsifier Pumpis low noise, stable operation

● The Pipeline High Shearing Emulsifier Pumpcan reduced quality difference between lots

● Product is fully dispersed and sheared

● Deliver in short distance with low life

● The Pipeline High Shearing Emulsifier Pumpis easy operation, convenient maintenance

● The dissolvable solid, liquid and gas material is then instantly dispersed and emulsified evenly and finely with better production procedures and appropriate additives and finally products with stable high quality are made.

Product Parameters：

Parameter/Type	Power Kw	Speed rpm	Flow m³/h	Inlet	Outlet
PWR-4	4	3000	2-14	DN40	DN32
PWR-75	7.5	3000	8	DN50	DN50
PWR-110	11	3000	12	DN65	DN50
PWR-220	22	3000	22	DN65	DN80
PWR-370	37	1500	30	DN100	DN100
PWR-550	55	1500	40	DN125	DN100
PWR-750	75	1500	55	DN125	DN100
PWR-900	90	1500	65	DN125	DN100
PWR-1100	110	1500	80	DN150	DN125
